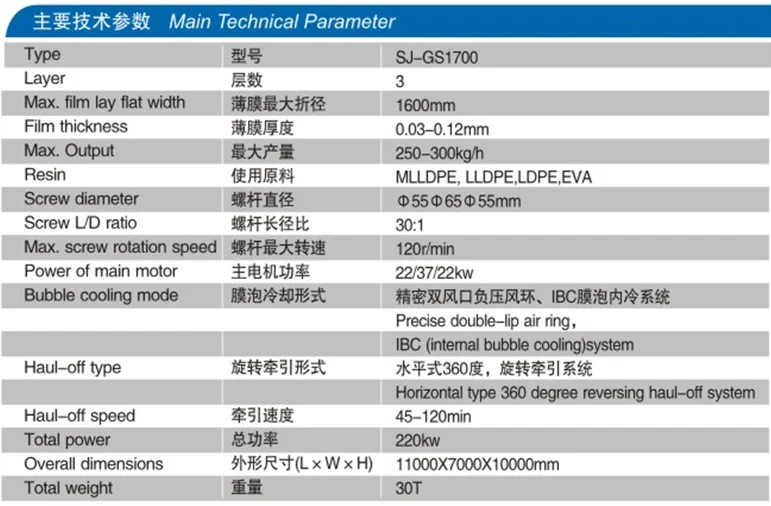

Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANBI
  • Model Number: 3SJ-GS1200-3000
  • Voltage: 3p/380v/50hz
  • Power(W): 220-300kw
  • Dimension(L*W*H): 10-15METER HEIGHT
  • Weight: 30000KGS
  • Certification: ISO9001,CE. SGS
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certificate: ISO9001, CE
  • Extruding type: Three layers co-extrusion
  • Raw material: LDPE,, LLDPE. MLLDPE .EVA
  • Bubble cooling mode: IBC system
  • rewinding: double Automatic
  • Capacity: 150-300gs/h
  • haul-off: horizontal type 360 degreen

Packaging & Delivery

Packaging Details standard packing(wooden case, wooden block, nude packing), or as per your requirement
Delivery Time 25-30 work days
Product Description

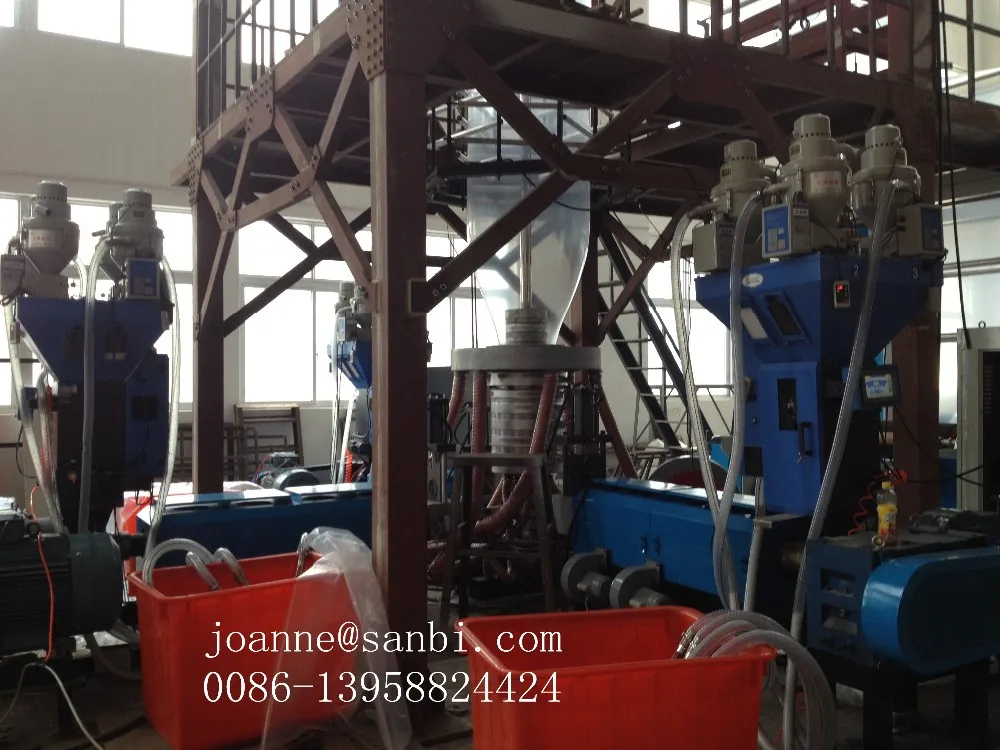

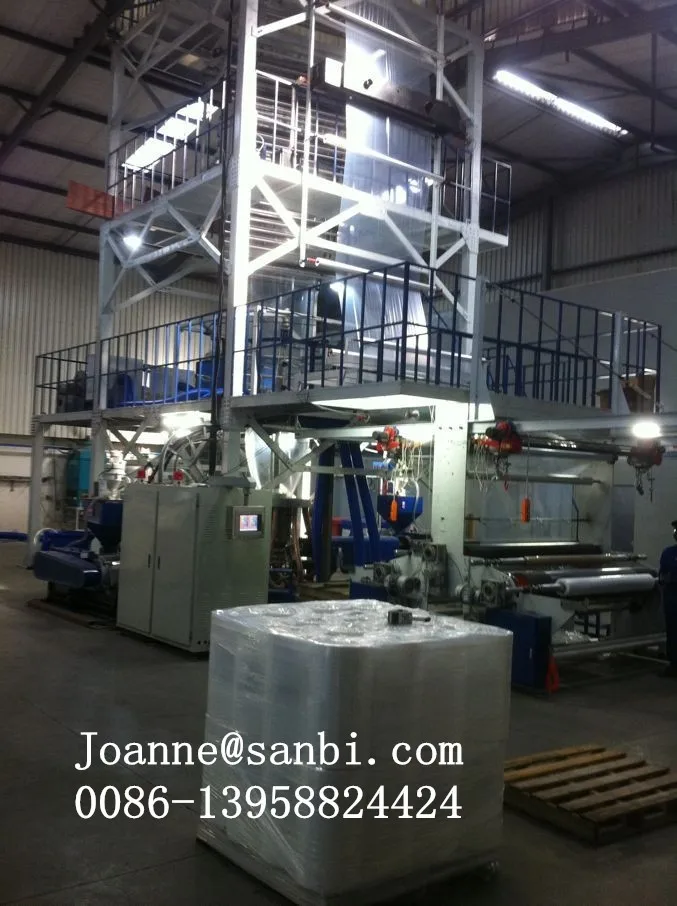

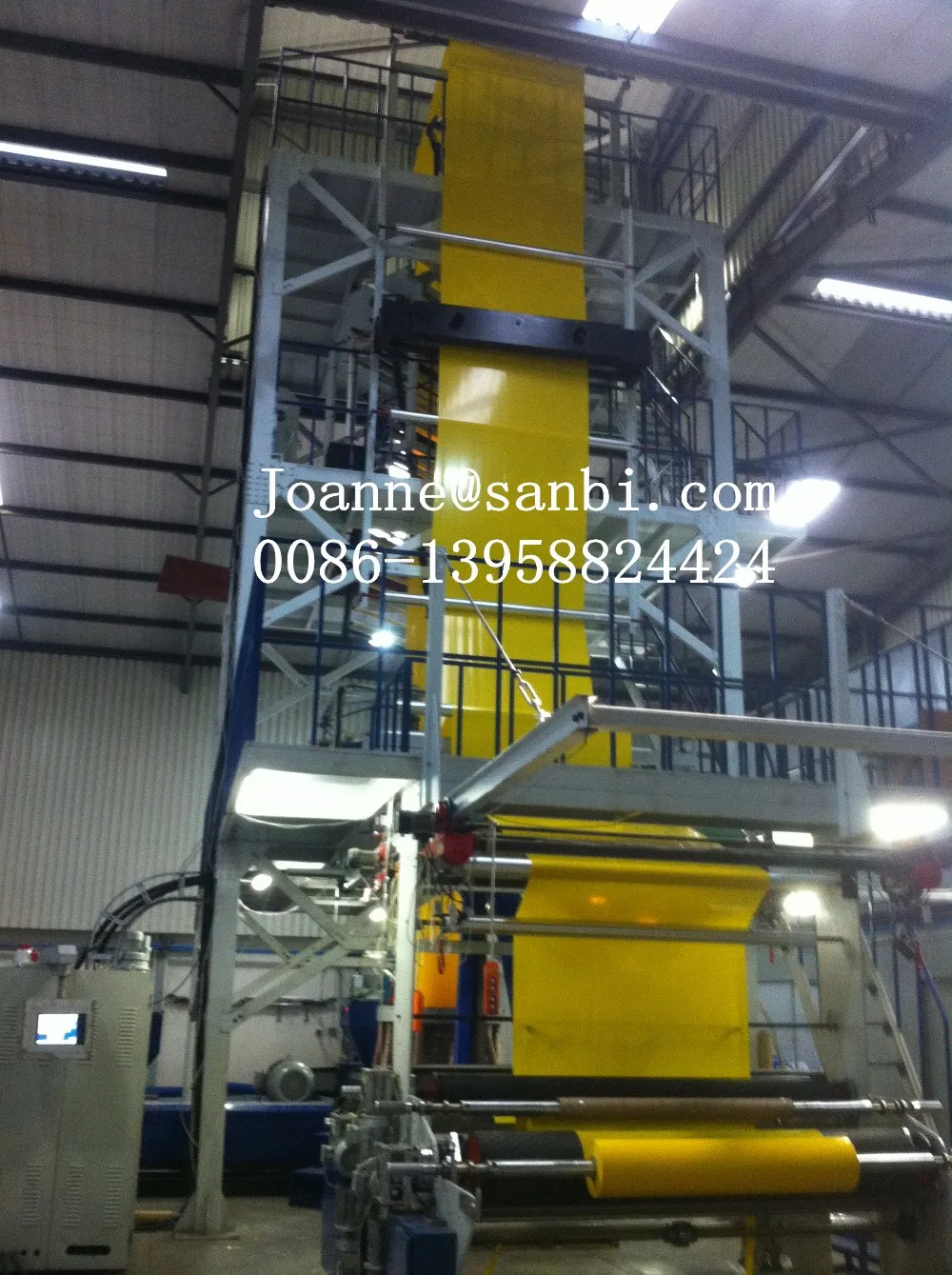

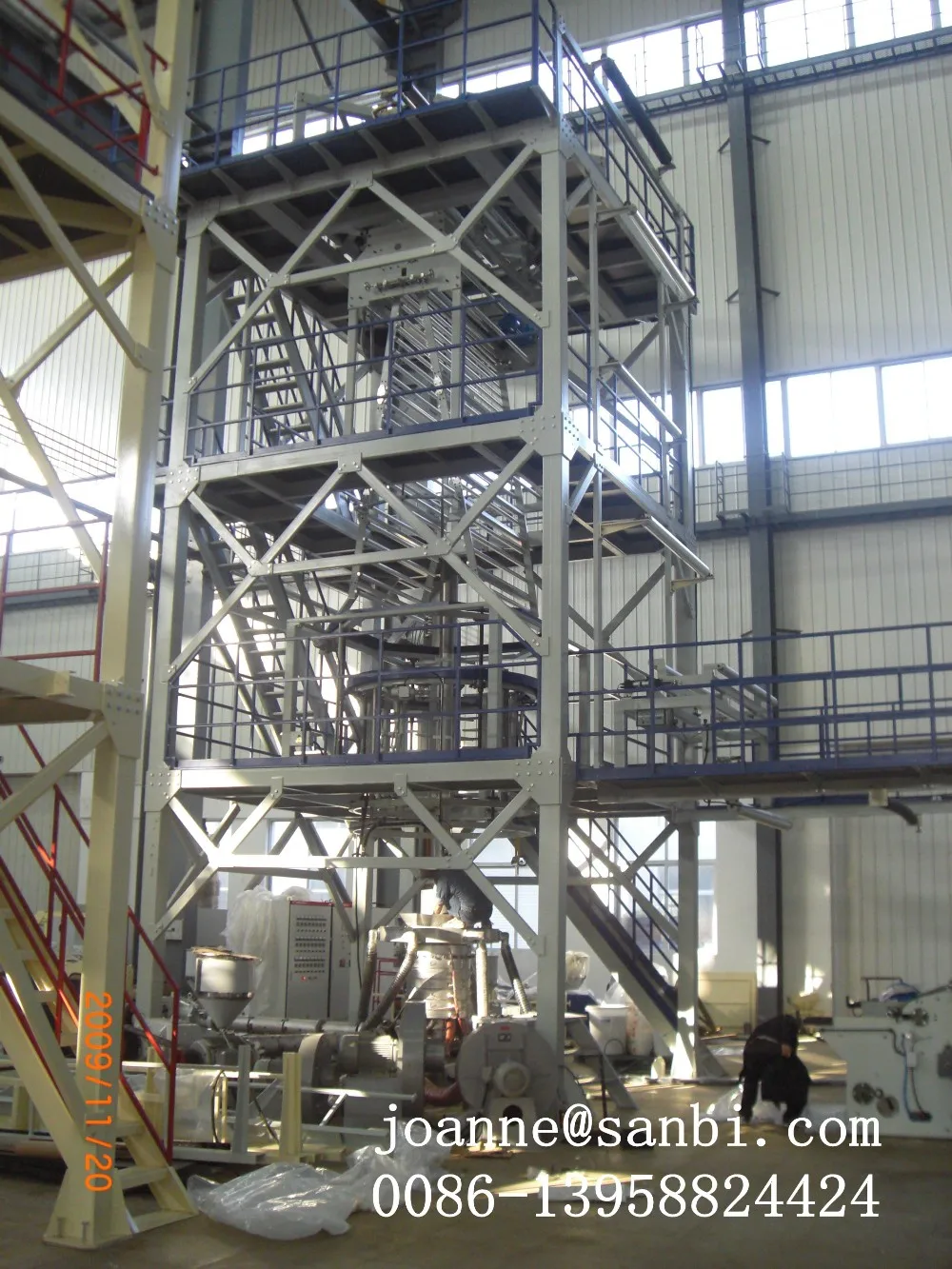

 High speed three layers co-extrusion   Film blowing Machine (3SJ-GS1200-2500)


Product Application

Haul-off unit is oscillating reverse by horizontal±180。.Its structure is reasonable, so it economizes lots of energy and it is easy to maintain. By means of the reversing haul-off unit, films can be produced without requiring rotating die head, so the structure of die head is simplified. Reversing haul-off unit eliminates many problems of ling channel for the rotating die head, difficult sealing for the melt, compound leakage being easy, unsymmetrical heating, difficult maintenance, macro film tolerance and so on Haul-off unit reduces the degree of difficulty for recipe of the multi-layer co-extruded product and production technical processing control, if the blowing film line is with IBC (Internal Bubble cooling system), it can produce film with the quality of more high-grade transparency and better all-round performance. The produced film is very flat, reel is high-quality by the use of reversing haul-off units. The film can meet the demand for the high-speed printing.


Main Features

1) strong  structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high speed automatization and intellectualization,no pollution

5) use PLC  automatic controller rewinder change

6) IBC system cooling bubble  improved capacity


Certifications
Detailed parts

Machine Parts

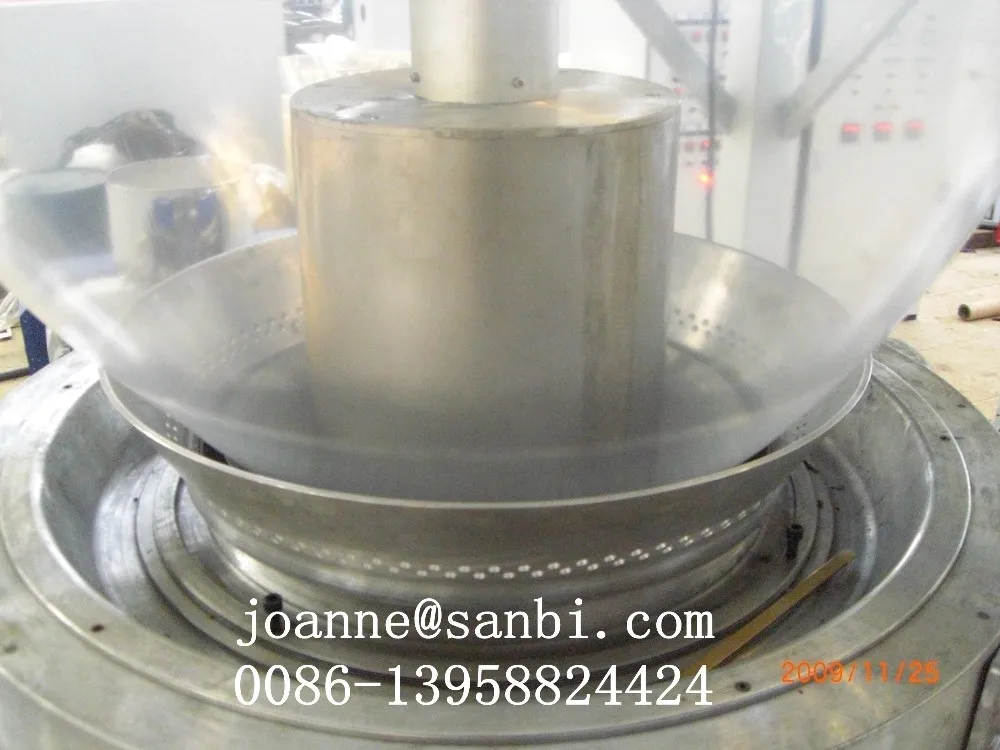

Name: head with IBC system

Brand: SANBI

Original: China

Useful:  INTERNAL BUBBLE COOLING improved capacity.

Main Features

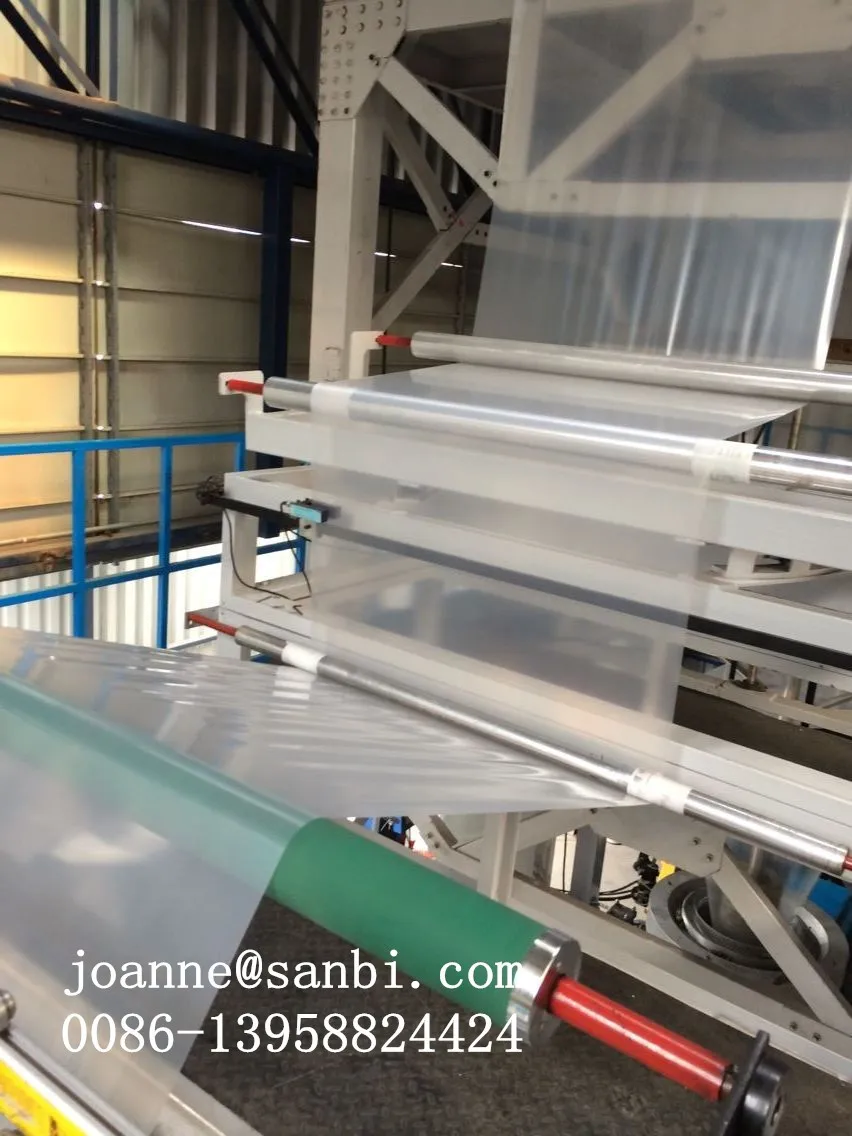

Name: rotary tractions system
Brand: SANBI
Original: China
Horizontal type 360 degree reversing haul-off system. make film thickness more even

Machine Parts

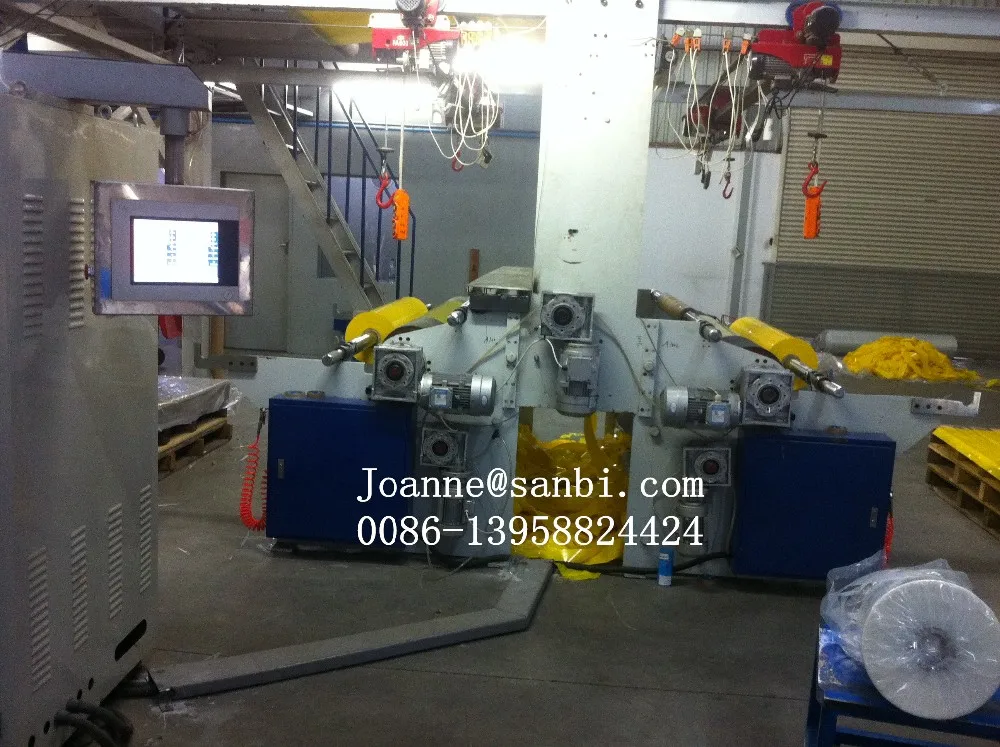

Name: full automatic  back to back rewinder
Brand: SANBI
Original: CHINA
Fly knife automatic cutting roll film .then automatic change roller. save manpower.easy to operating .

Main Features

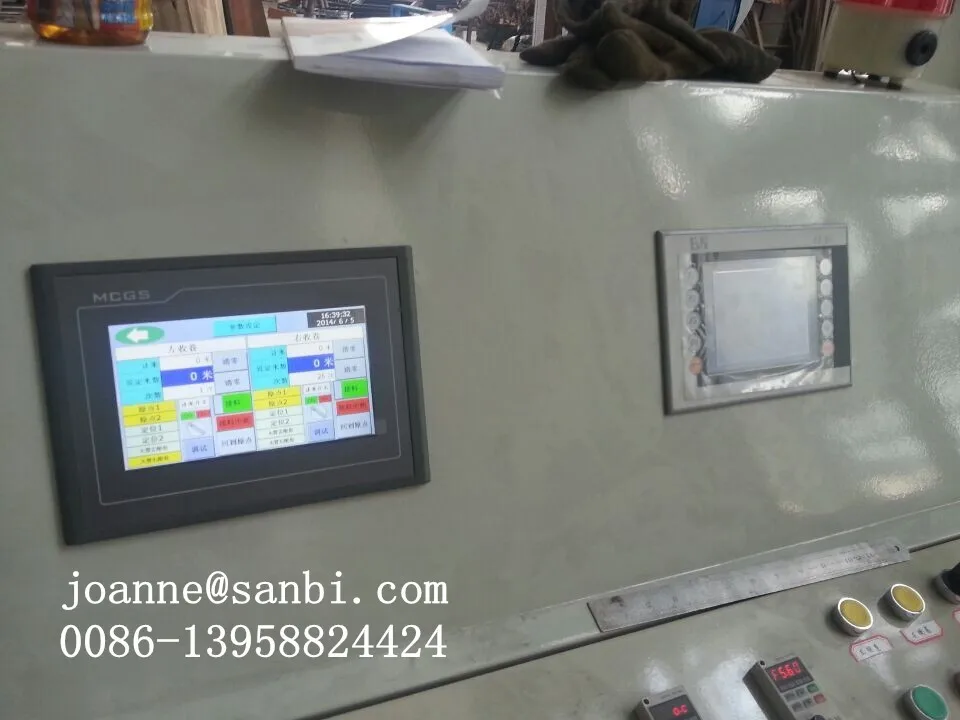

Name: PLC system for Automatic rewinder
Brand: sanbi
Original: China
automatic change roller controler by PLC system







EPC SYSTEM :

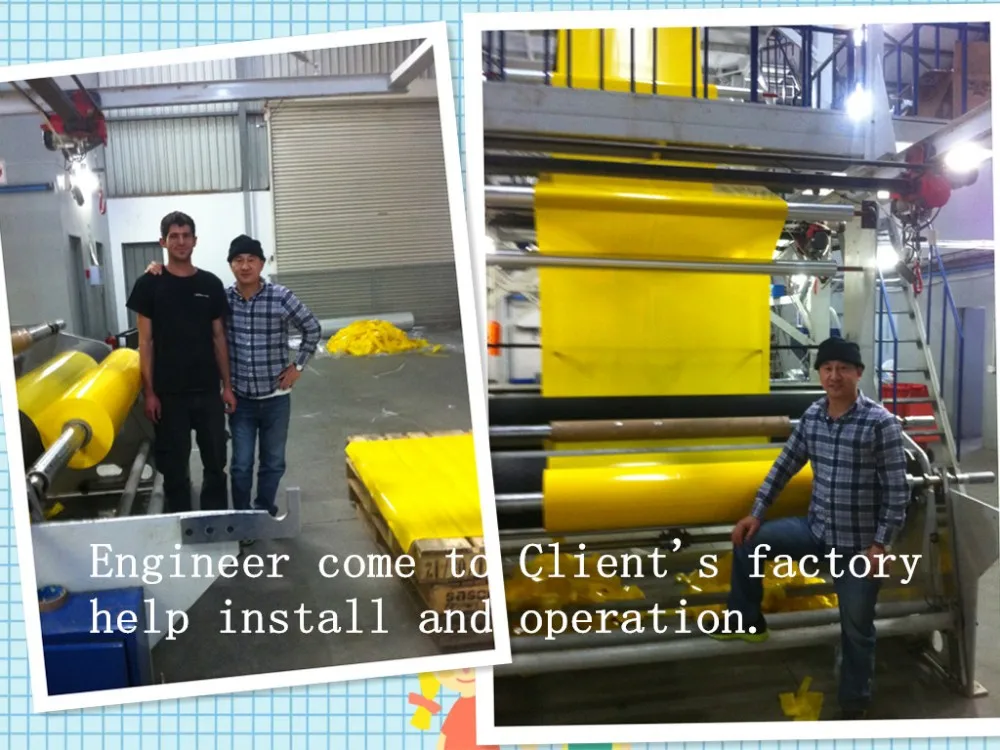

Our Service

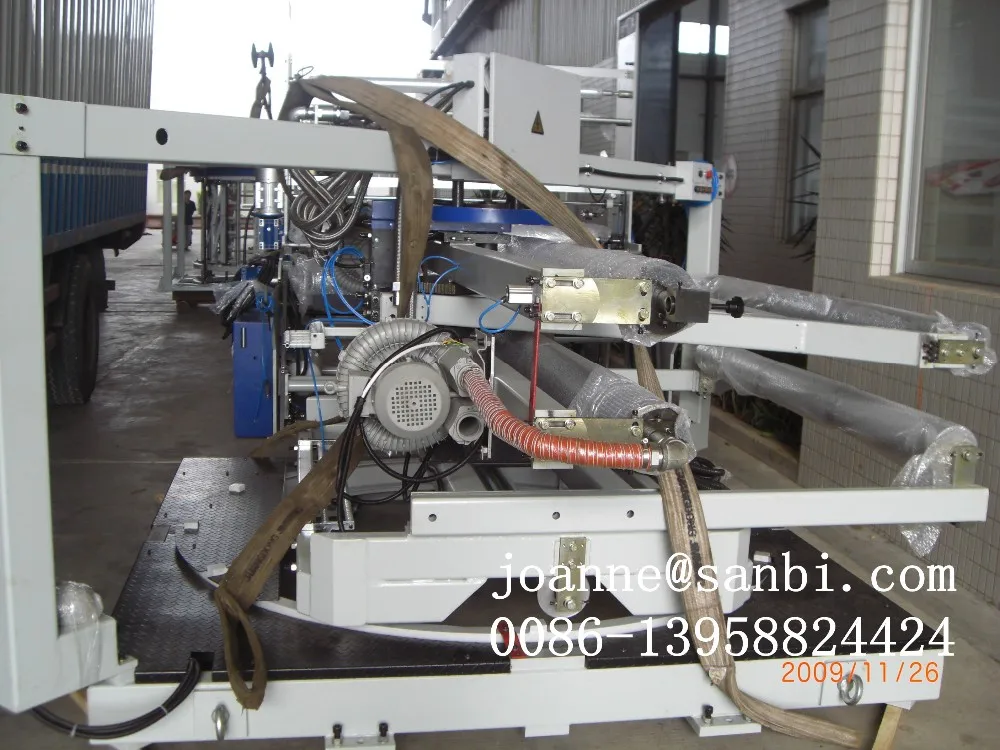

Packing & Delivery
Packaging
Size
according measued size
Weight
2.0-3.5T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

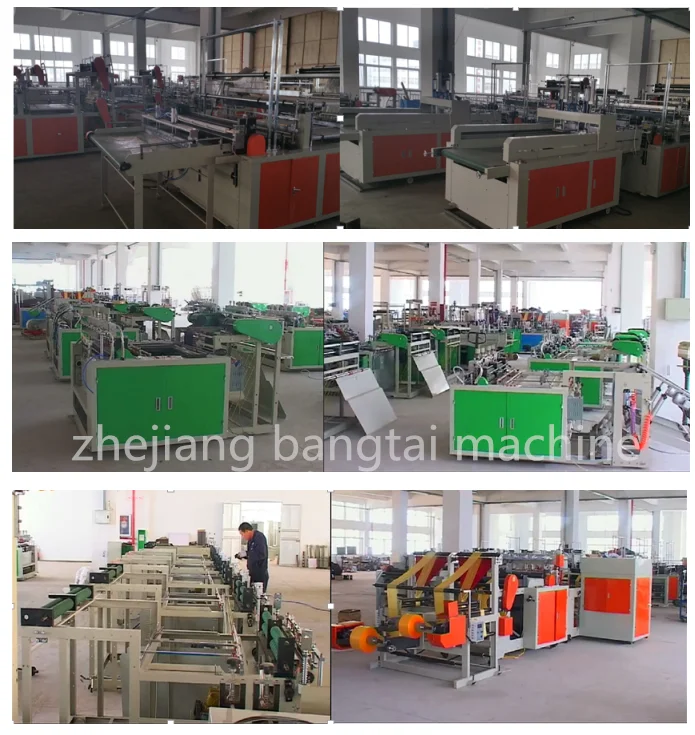

Factory image
