Quick Details

  • Type: Flexographic Printer
  • Condition: New
  • Plate Type: flexo
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Sanbi
  • Model Number: HCI-6600-61200
  • Usage: Bill Printer, Label Printer, Paper Printer
  • Automatic Grade: Semi-Automatic
  • Color & Page: Multicolor
  • Voltage: 3Phases 380V 50HZ
  • Gross Power: 60KW
  • Dimensions(L*W*H): 6.0m*2.7m*2.5m
  • Weight: 5000KGS
  • Certification: ISO9001 CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material: film .paper etc.
  • printing colors: 2-8 colors
  • printing speed: 120-200m/min
  • color register: manual
  • printing way: central drum
  • unwinder: with EPC. automatic tension conroller
  • Ceramic anilox roller:: 200-8000LPI
  • Doctor blades: Both way blade aluminium alloy ink box

Packaging & Delivery

Packaging Details standard wooden packing for exporting
Delivery Time 50 days
Product Description

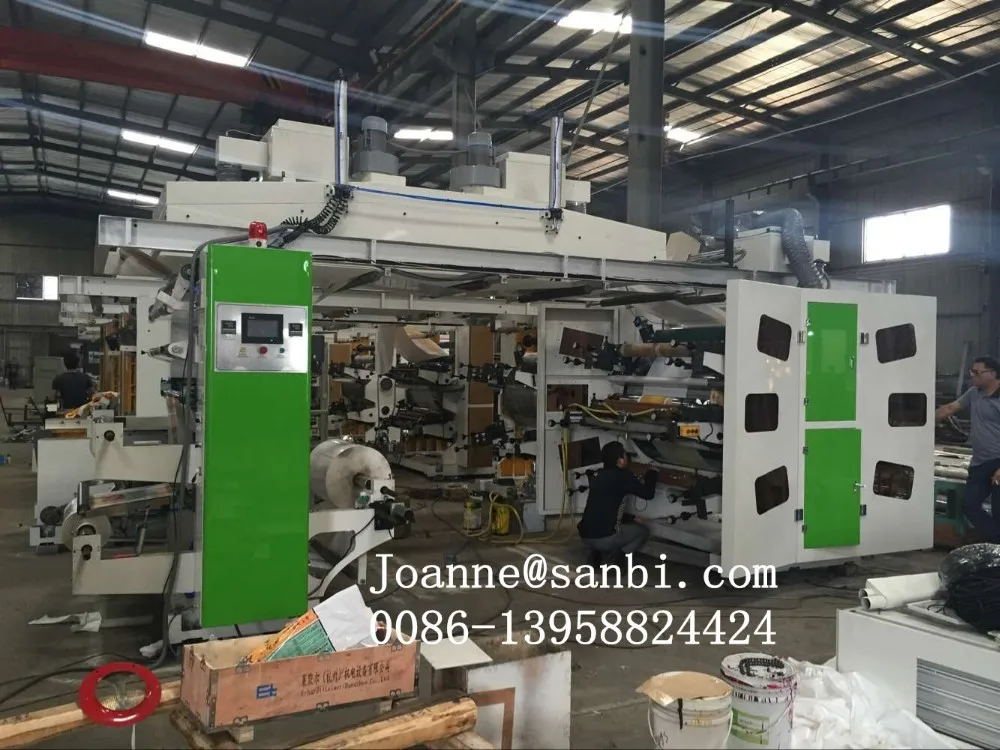

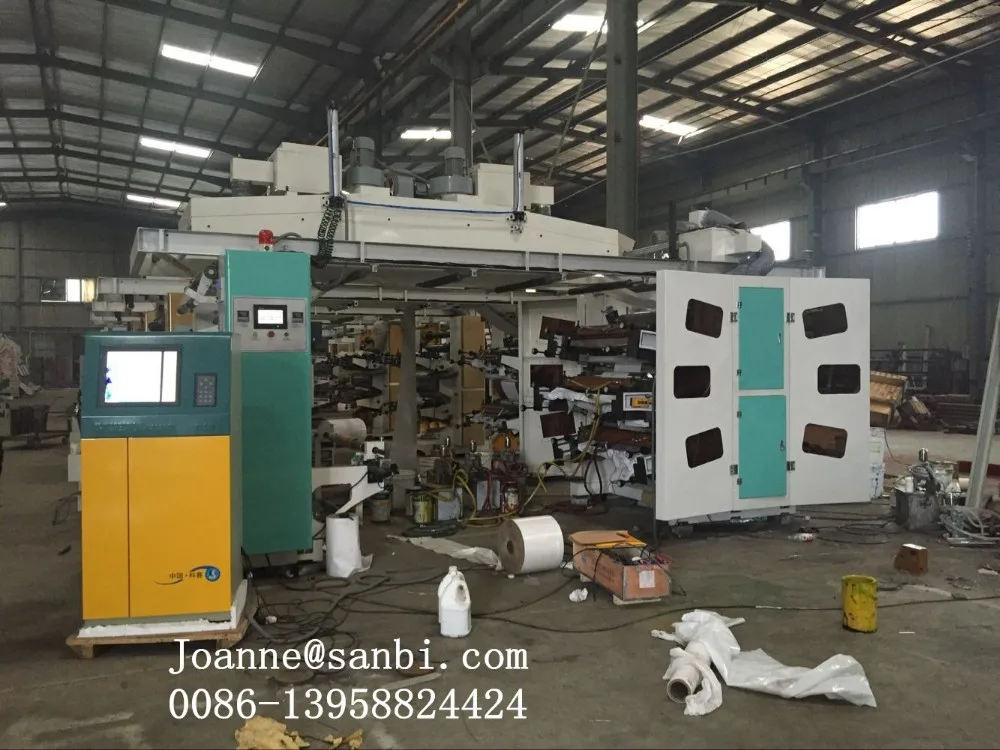

HCI-61200 Central Impression Flexoggraphic Printing Machine


Product Application



1.The machine introduction & absorption of European technology / process manufacturing, supporting / full functional, has the following features:
2.After mounting the plate and registration, no longer need registration, improve yield;
3.Replacing 1 set of Plate Roller (unloaded 6pcs old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing;
4.The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
5.Maximum production machine speed up 200m/min, registration accuracy ±0.15mm, 6、The overlay accuracy does not change during lifting running speed up or down.
7.When machine stop, Tension can be maintained, the substrate is not deviation shift;
8.The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield;
9.With structural precision, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

Suitable Printing Material:
 Plastic film: Shrink film, BOPP/PET /PE/NY, ect. 5-150um
Paper: adhesive paper/ thin paper, ect (30-160 g/㎡)
Suit to roll paper with good performance, it print continuously with beauty quality.
Material width: MAX 1450mm
Diameter: MAXф600mm, Unwind and Rewind: 3″( by Air shaft)
Above material adopts: oil-based ink, alcohol solvent environment protection ink, and photopolymer plate.

Certifications
Detailed Images

Machine Parts

Name: Automatic  tension control

Brand: SANBI

Original: China

Automatic Tension control for Unwinder and rewinder

Main Features

Name: printing unit with closed  chamber type doctor blades
Brand: SANBI
Original: CHINA
chamber type doctor blades. when running high speed, ink difficult come out

Machine Parts

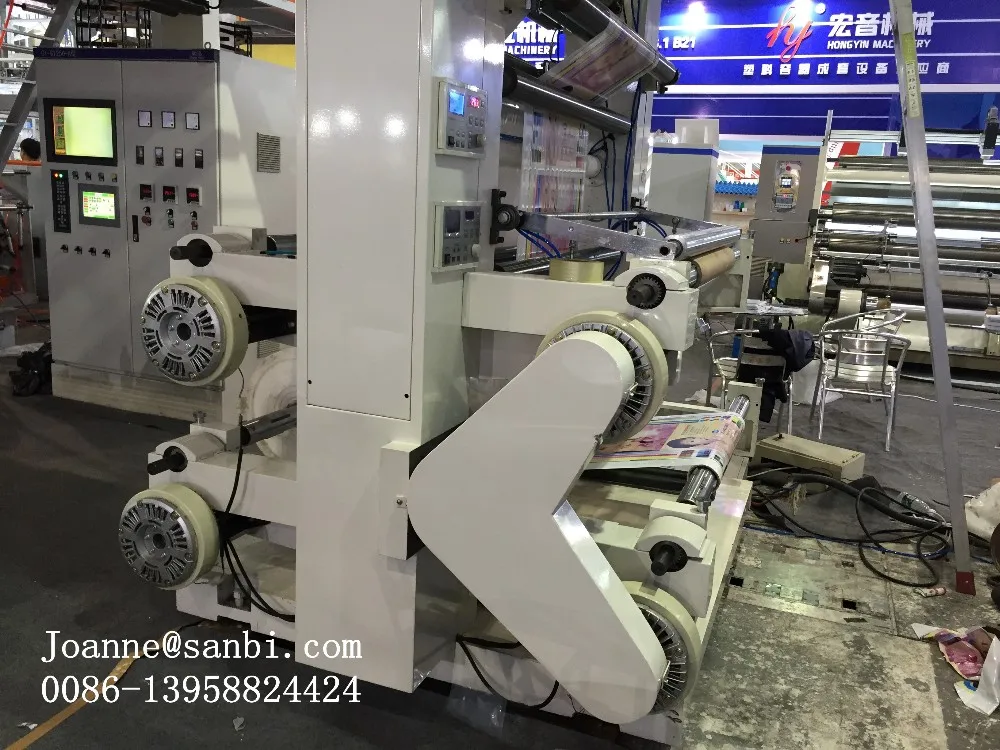

Name: double  rewinder and unwinder
Brand: sanbi
Original: China

Bag sample

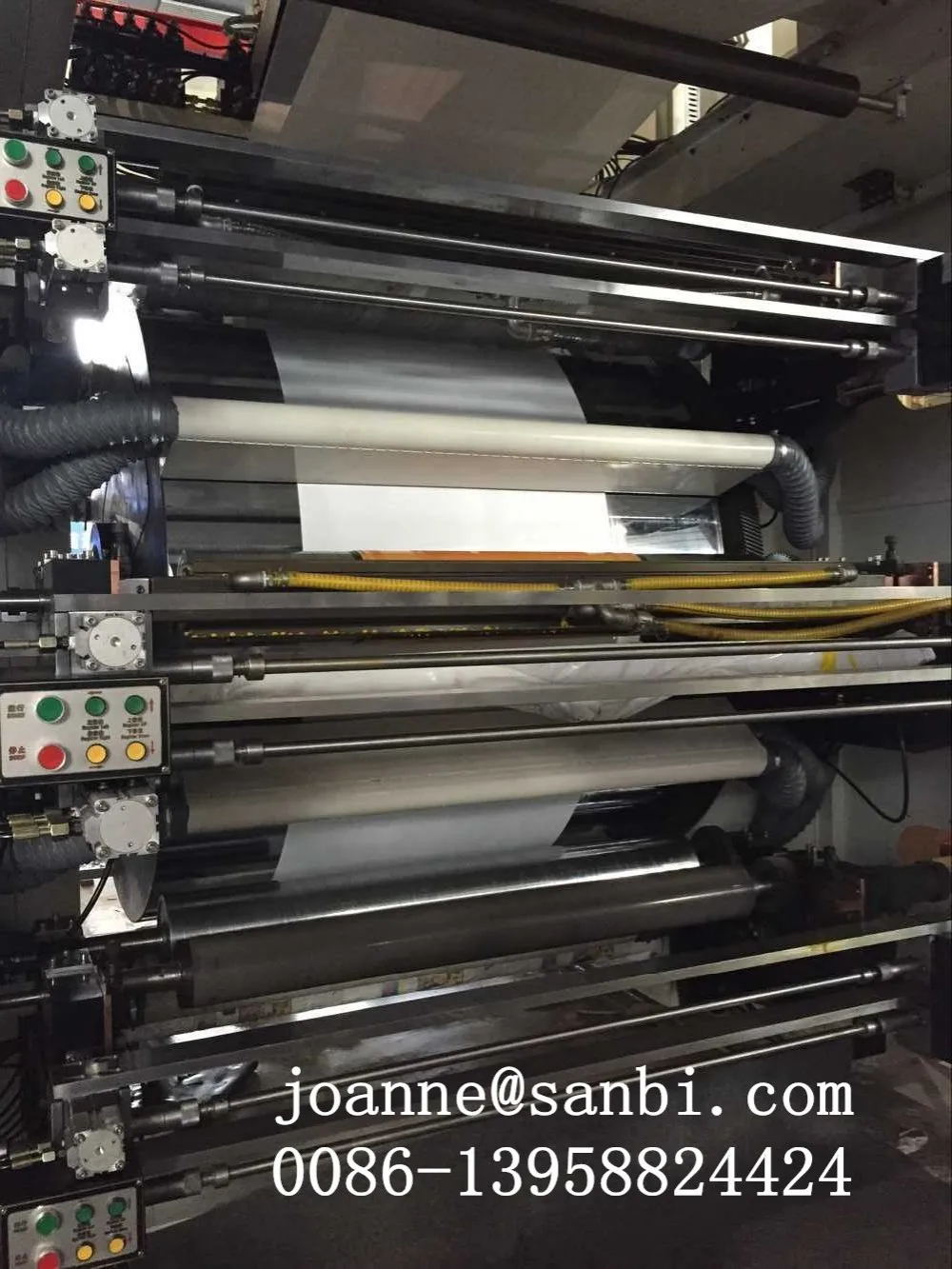

Name: central drum type printing unit
Brand: SANBI
Original: China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Factory image
Packing & Delivery
Packaging
Size
according actual measured size
Weight
2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
according actual measured size
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
