Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANBI
  • Model Number: double head SJ75-FM800
  • Voltage: 380V/50HZ
  • Power(W): 70KW
  • Dimension(L*W*H): 5600*3400*4700mm
  • Weight: 4000kgs
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certificate: ISO9001, CE
  • Extruding type: Double head
  • Raw material: LDPE,, .HDPE.
  • Head: Double head
  • rewinding: DOUBLE
  • Capacity: 90-100kgs/h

Packaging & Delivery

Packaging Details standard packing(wooden case, wooden block, nude packing), or as per your requirement
Delivery Time 25-30 work days
Product Description

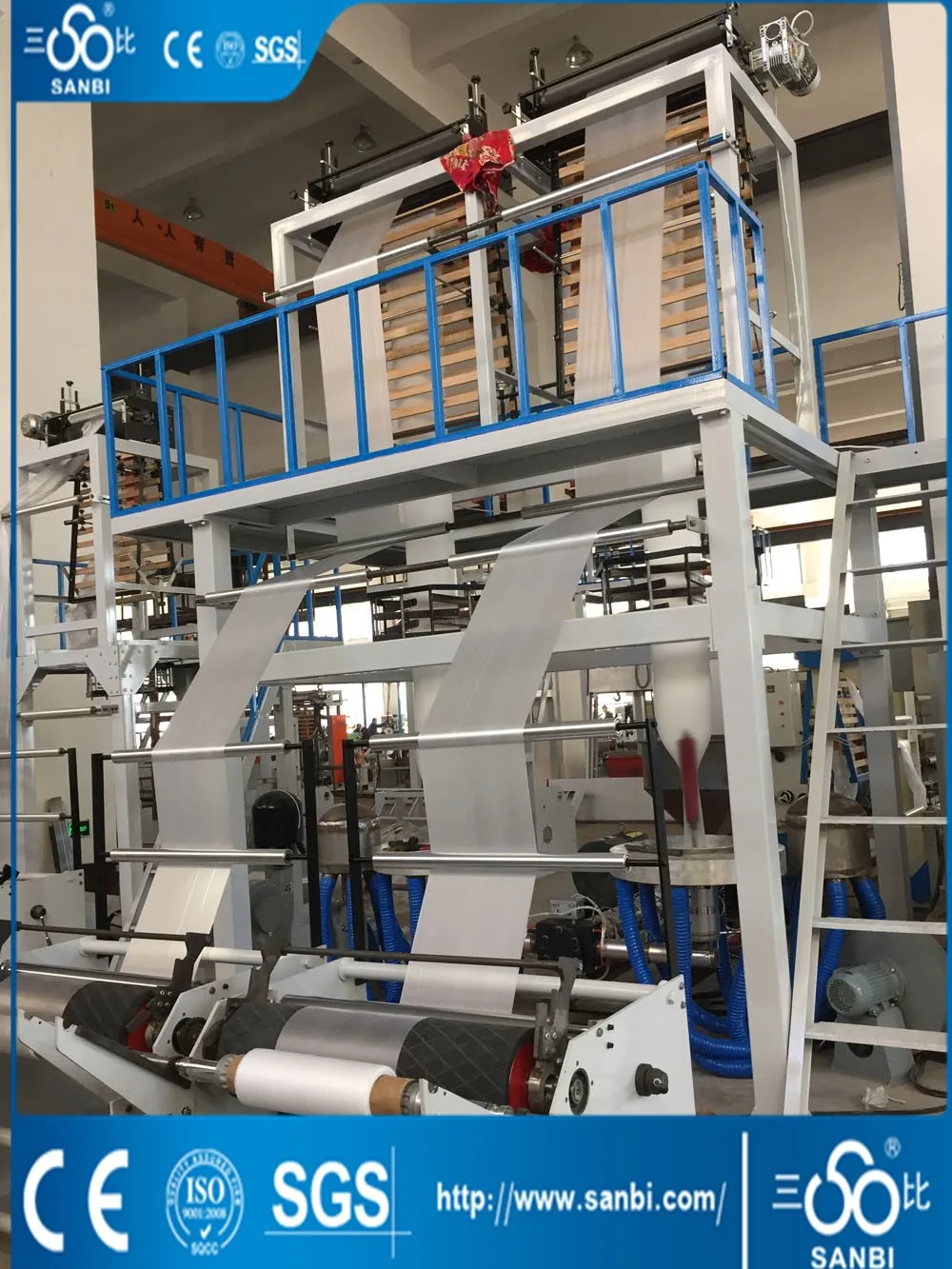

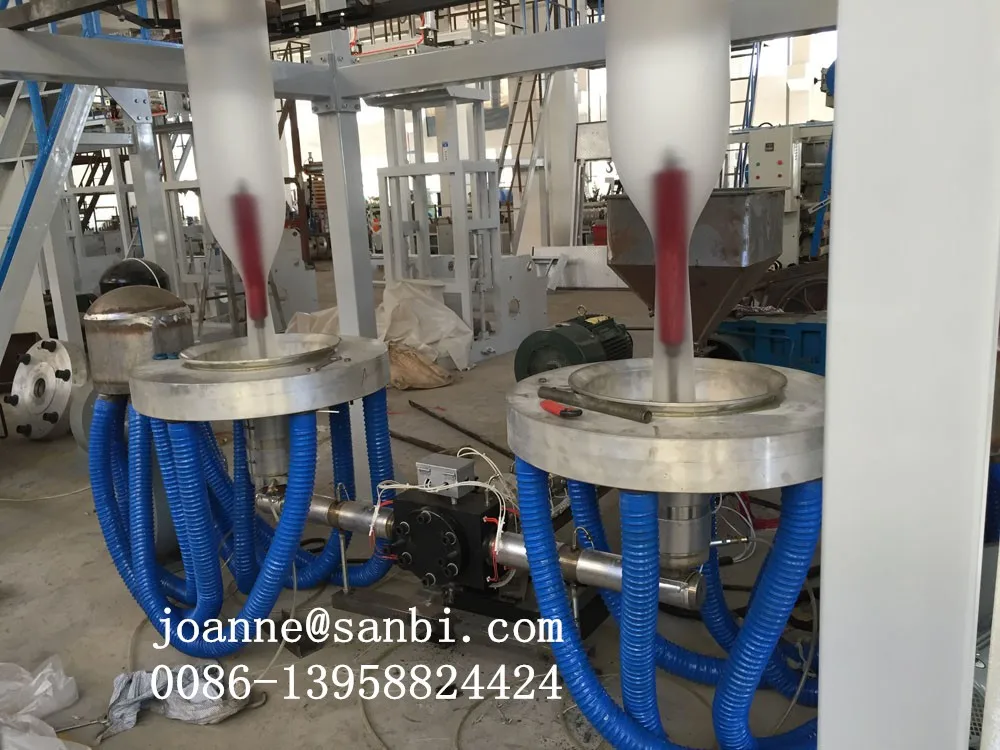

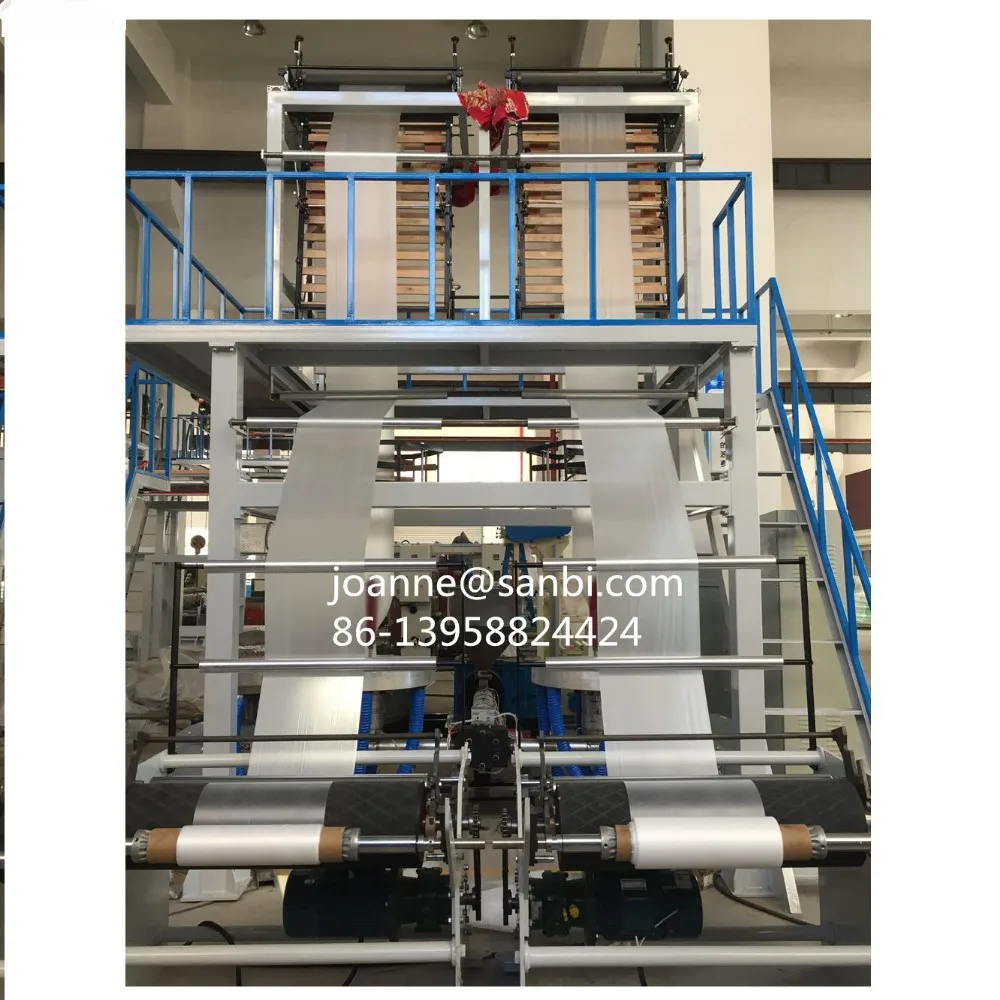

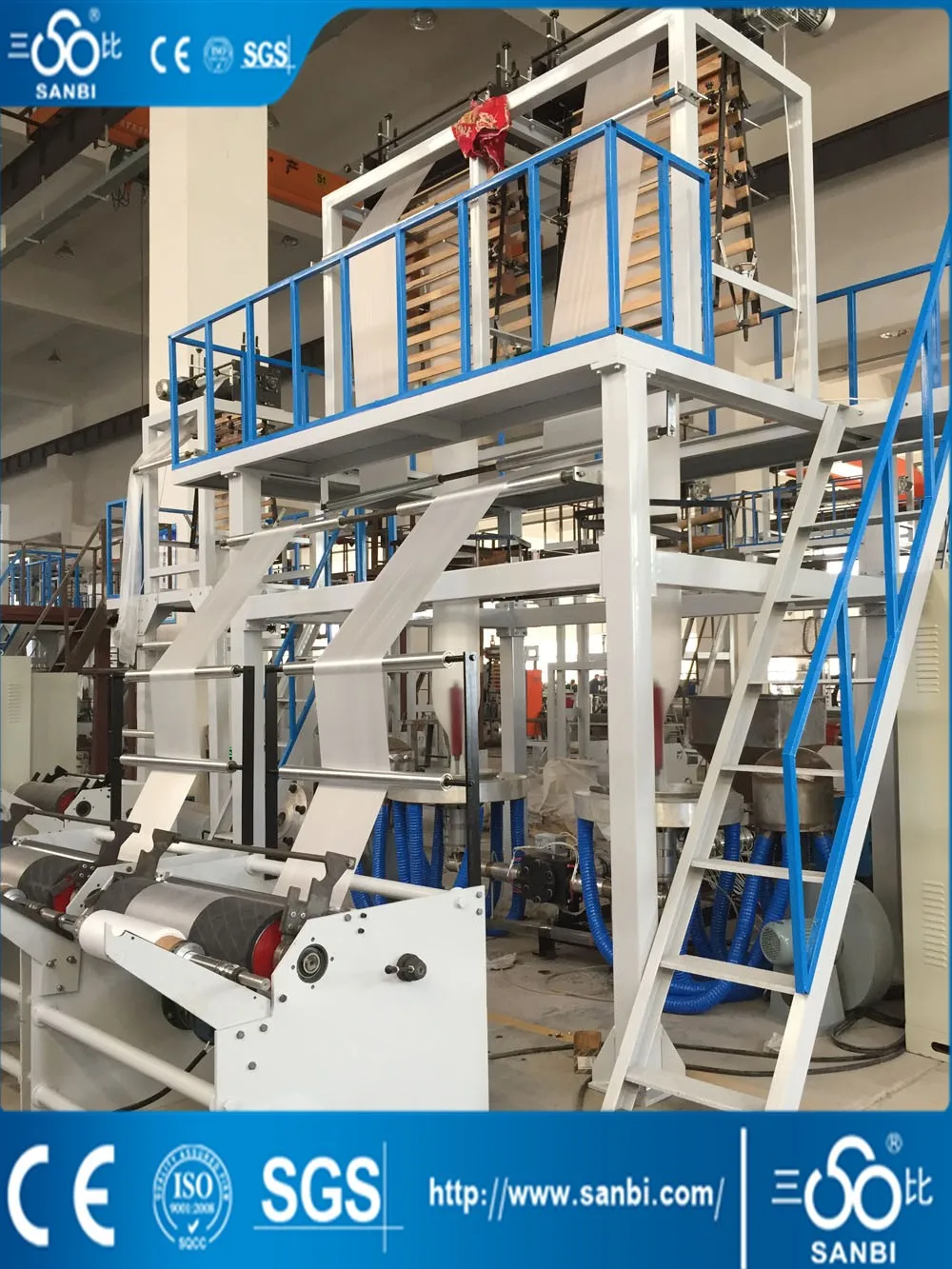

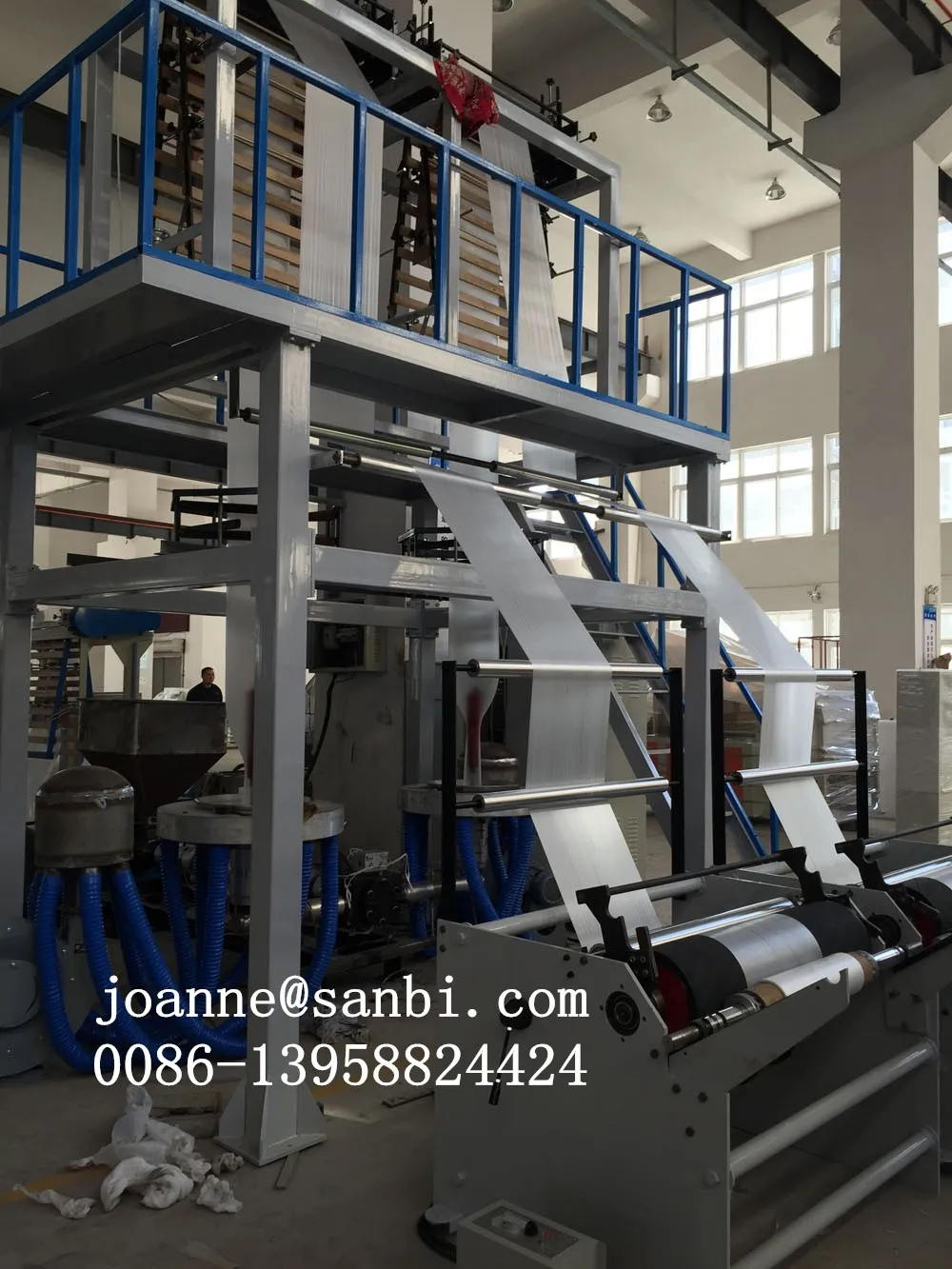

 Double head PE  Film blowing Machine


Product Application

use:
T his machine set is used for blowing Low-density polyethylene (LDPE) and high- density (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.

Characteristics :
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.


Model
SJ-65FM-600
SJ-70FM-700
SJ-75FM-800
Diameter of screw
65mm
70mm
75mm
Screw Ratio (L/D)
28:1
28:1
28:1
Screw Speed
10-110r/min
10-110r/min
10-110r/min
Max.Output
50kg/h
70Kg/h
90Kg/h
Max.Folding width of Film
550mm * 2 (thickness 0.05-0.08mm
600mm*2(thickness0.006-0.05mm)550mm * 2 (thickness 0.05-0.08mm
650mm * 2 (thickness 0.05-0.08mm
700mm*2(thickness0.006-0.05mm)
750mm * 2 (thickness 0.05-0.08mm

800mm*2(thickness0.006-0.05mm)
Single-sided Thickness of Film
0.006-0.08mm
0.006-0.08mm
0.006-0.08mm
Die head
Dia.100 *2 (LDPE)
Dia.60 *2( HDPE)
Dia.120 *2 (LDPE)
Dia.70 *2( HDPE)
Dia.150 *2 (LDPE)
Dia.80*2( HDPE)
Power of Main Motor
18.5-22Kw
30kw
37kw
Total power
40kw
55kw
70kw
Weight of Machinery
3000kg
3800kg
4500kg
Overall Dimensions
4800* 2200* 3800mm
53200 * 3200* 4200mm
5200* 3400 *4200mm

Main Features

1) strong  structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high speed automatization and intellectualization,no pollution

5) DOUBLE HEAD  TWO LINES INPROVED CAPACITY



Certifications
Detailed parts
Our Service
Packing & Delivery
Packaging
Size
according measued size
Weight
3-4T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
