Quick Details

  • Type: Other
  • Condition: New
  • Packaging Type: Film
  • Packaging Material: Wood, paper, film , al-foil
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V/50HZ
  • Power: 15KW
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANBI
  • Model Number: BTM-K 1300
  • Weight: 5500Kgs
  • Dimension(L*W*H): 3900mm*4500mm*1900mm
  • Certification: CE Certificate
  • After-sales Service Provided: Engineers available to service machinery overseas
  • slitting material: cellophane, PET, OPP, CPP, PS, PVC,
  • Diameter of rewinding: 700mm
  • Diameter of roll: 1100mm
  • speed: high speed
  • Control: PLC,servo
  • Certificate: CE, ISO
  • Mechanical Slitting speed: 10-500m/min

Packaging & Delivery

Packaging Details WOODEN BOX./WOODEN PALLET
Product Description

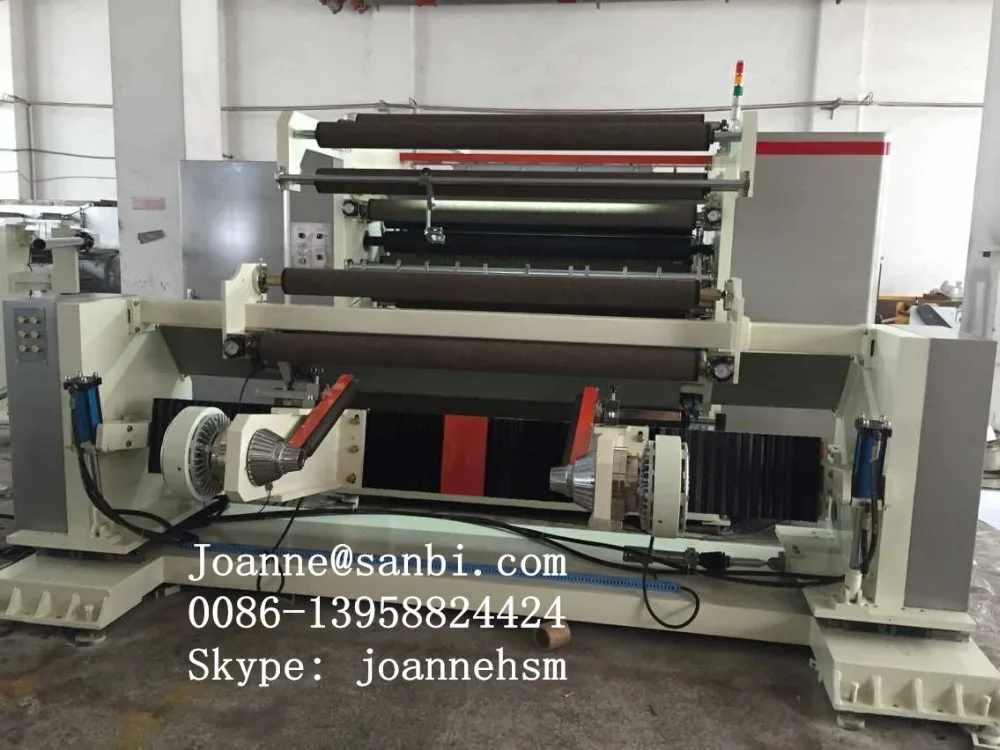

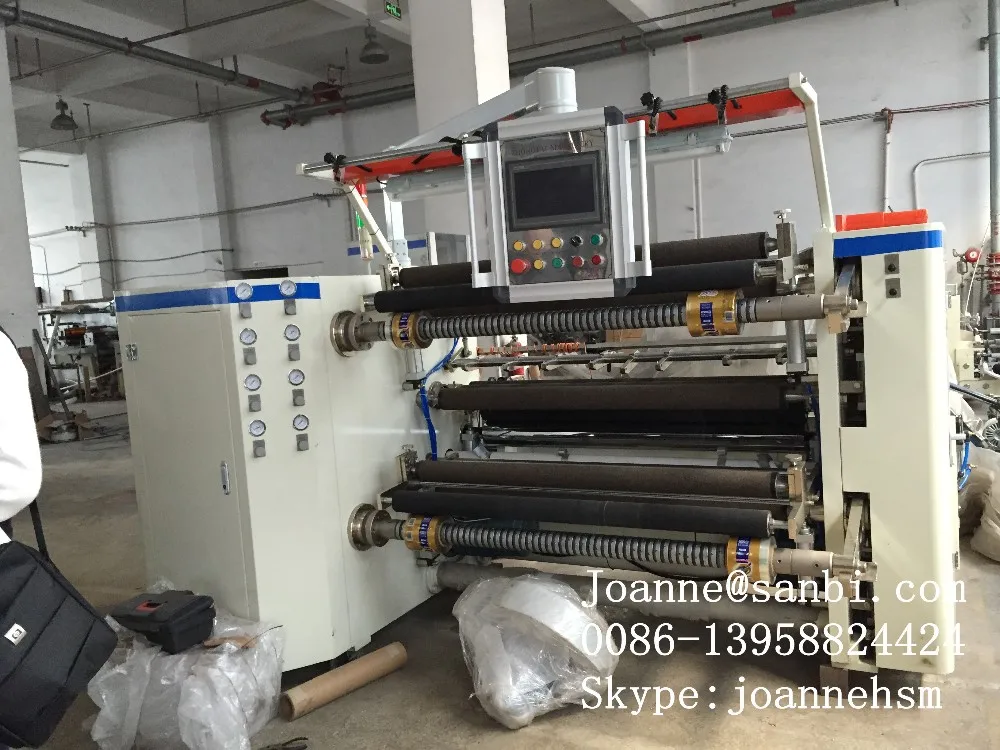

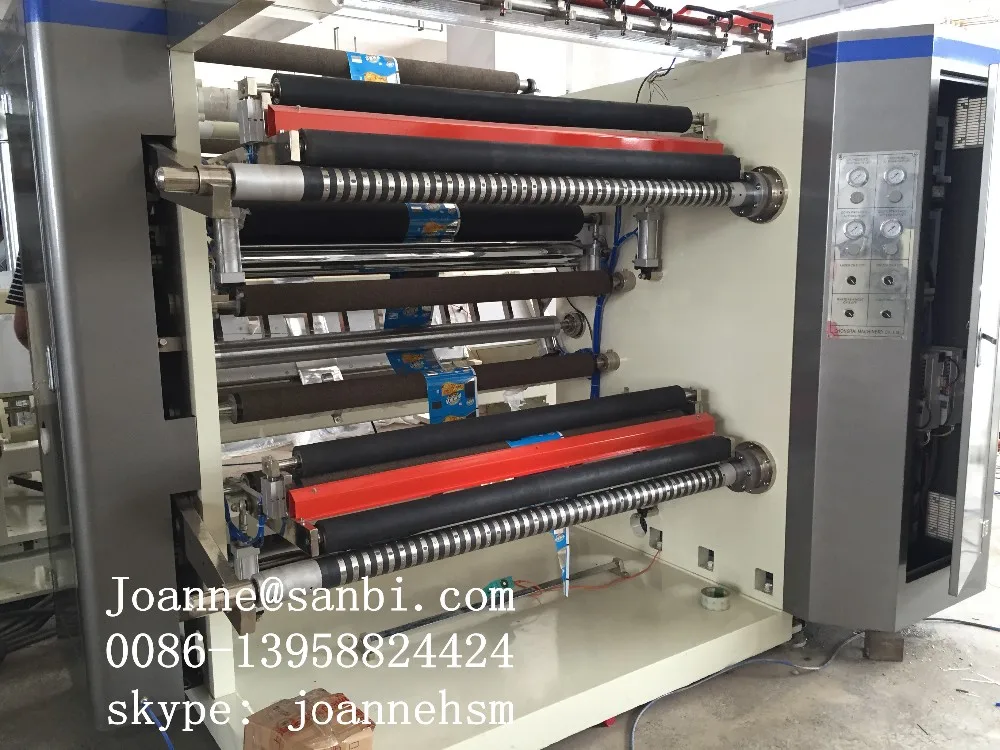

BTM-K 1300 SERVO DRIVE HIGH SPEED SLITTING MACHINE


Uses:

The machine applies to slit cellophane, PET, OPP, CPP, PS, PVC, optical materials, film roll, film and printing of various materials, from 30 ~ 500 Micron Thickness.

Advantages of BTM-K Servo drive high speed slitting machine:

1)It's specialized for the optical films and coated film industry. It’s equipped with a high performance PLC micron-processor combined with movable colourful touch screen that operator is able to control the machine both in rewinder position and unwinder position.
2) High-end surface treatment roller gives no scratch during slitting and rewinding on the Optical or coated films.
3) Real time diameter checking technology attached on the rewinding unit. The Ultrasonic sensor checking the exact diameter every 0.05seconds and it gives the PLC to calculating the most suitable tension while the rewind diameter is changing.
4) Movable waste rewind provides the waste film to rewind gently on the ground and it minimized dust occur for the Clean room condition.

Jumbo roll width
1300mm
Diameter of roll
Φ1100mm
Diameter of rewinding
Φ700mm
Diameter of Unwinder paper core
3’’or 6”
Diameter of Rewinder paper core
3”
Mechanical Slitting speed
10-500m/min
Tolerance of EPC
≤0.1mm
Min. width of produce
30mm
Total power
15KW
Weight
5500Kg
Overall dimension (L X W X H)
3900mm*4500mm*1900mm

Main Features

 Main body unit:
1. Machine’s main body adopts cast iron and steel structure.(cast iron after secondary operation and setting treatment)
2. Main driving roller adopts seamless steel pipe (after tempering, surface hardening, chrome plated, mirror surface, dynamic balance treatment)
3. Main driving press roller adopts Taiwanese rubber roll (nitrile-butadiene rubber)
4. Material guide rollers adopts aluminum rollers(after hard chromeplate and special chasing treatment for avoid material's scratch) and rubber rollers (nitrile-butadiene rubber)
5. Driving mode of main body and rewind shafts adopt Chinese famous brand synchronizing wheel and belt.

Certifications
Detailed Images

Machine Parts

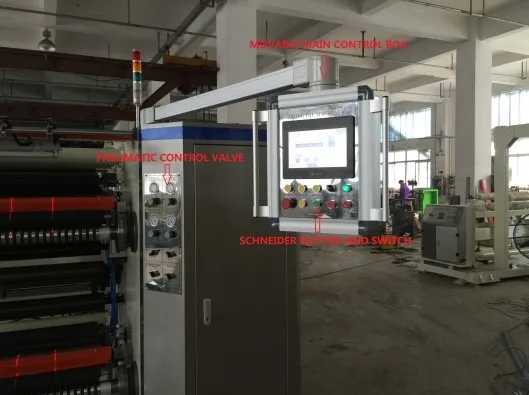

Name: TOUCH SCREEN

Brand: MCGS

Original: China

touch screen and PLC controler

Main Features

Name: unwinder
Brand: SANBI
Original: CHINA
EPC. Unwind tension’s actuator is 2 sets magnetic powder brake. Used Germany brand “E+L”

Shaftless loading .

Machine Parts

Name: Slitter unit
Brand: rotary cutter
Original: China

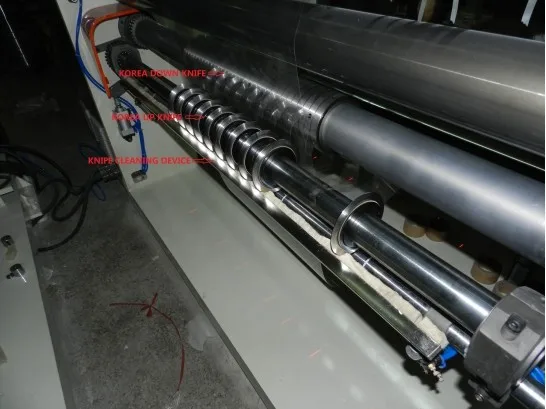

rotary cutter for paper .straight slitter for film

Main Features

Name: Electrical parts
Brand: yaskawa
Original: japan

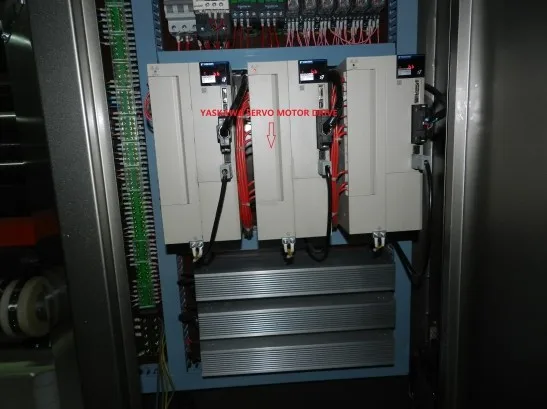

1. Main motor adopts 1 pc Japanese brand YASKAWA servo motor.
2. Rewind motor adopt 2 pcs Japanese brand YASKAWA servo motor.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
according actual size
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
according actual size
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
