Polyethylene Plastic Agricultural Film Blowing Machine

FOB Reference Price:Get Latest Price
  • >=1
    US $15000.00
Supply Ability:
20 Set/Sets per Month
Port:
ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Film, Laminating film ,agricultural film
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
No
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SANBI
Model Number:
SJ-C75/90/105/120
Voltage:
380V,50HZ ior according to the customer
Power(W):
70-150KW
Dimension(L*W*H):
9000X4000X8000MM
Weight:
5500kgs-12000
Certification:
CE,ISO9001;2000,SGS
Warranty:
1 Year Guarantee
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
SJ-C75/90/105/120
machine Name:
Polyethylene Plastic Agricultural Film Blowing Machine
Film width:
1000-2500mm
Film thickness:
From 0.01-0.10mm
rewinder:
double rewinder/single rewinder
Certificate:
CE,ISO9001:2000,SGS
die head:
Rotary head
Material:
LDPE ,HDPE ,LLDPE
Capacity:
120-220kgs/h
Packaging & Delivery
Packaging Details
Polyethylene Plastic Agricultural Film Blowing Machine: standard wooden case/wooden pallet
Delivery Time
Polyethylene Plastic Agricultural Film Blowing Machine 30 days
Video Description
Product Description

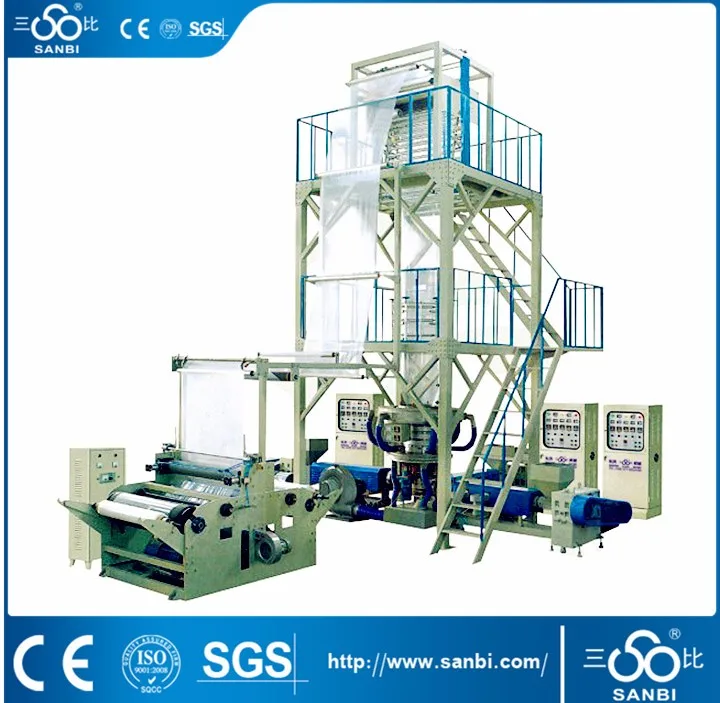

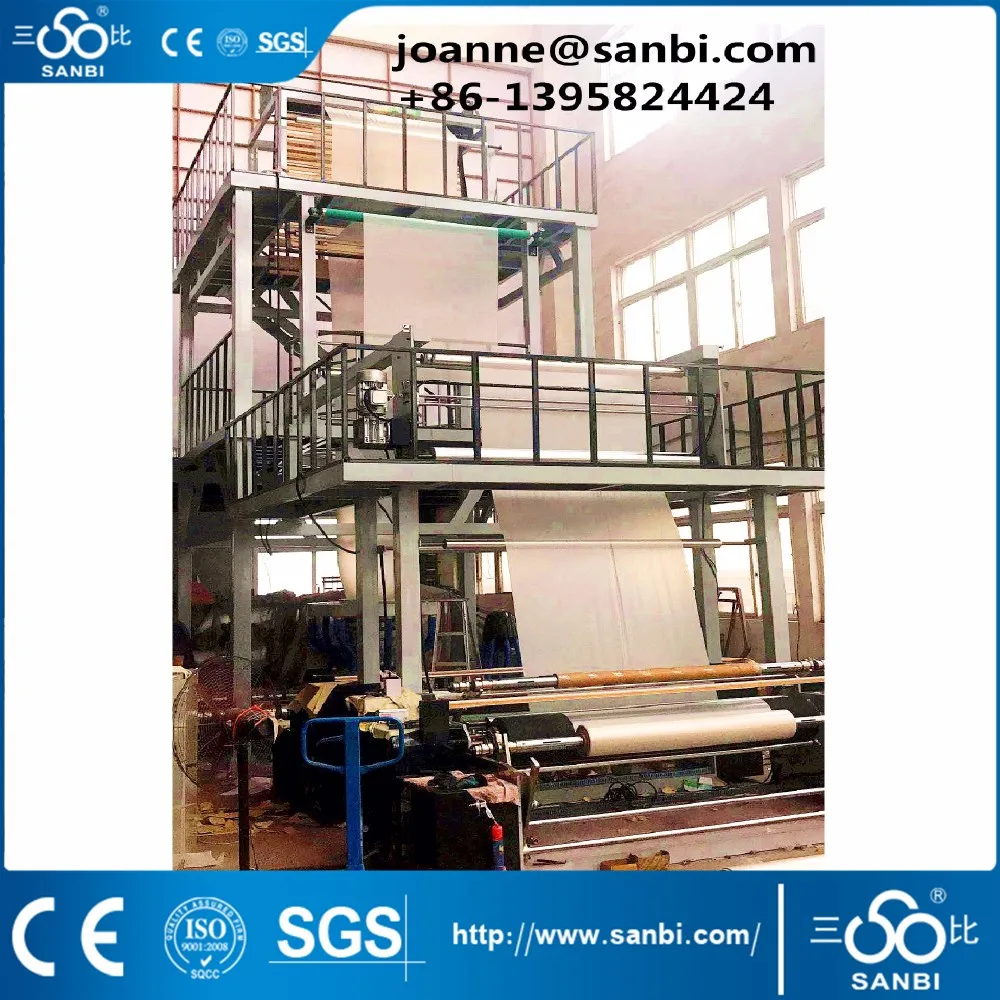

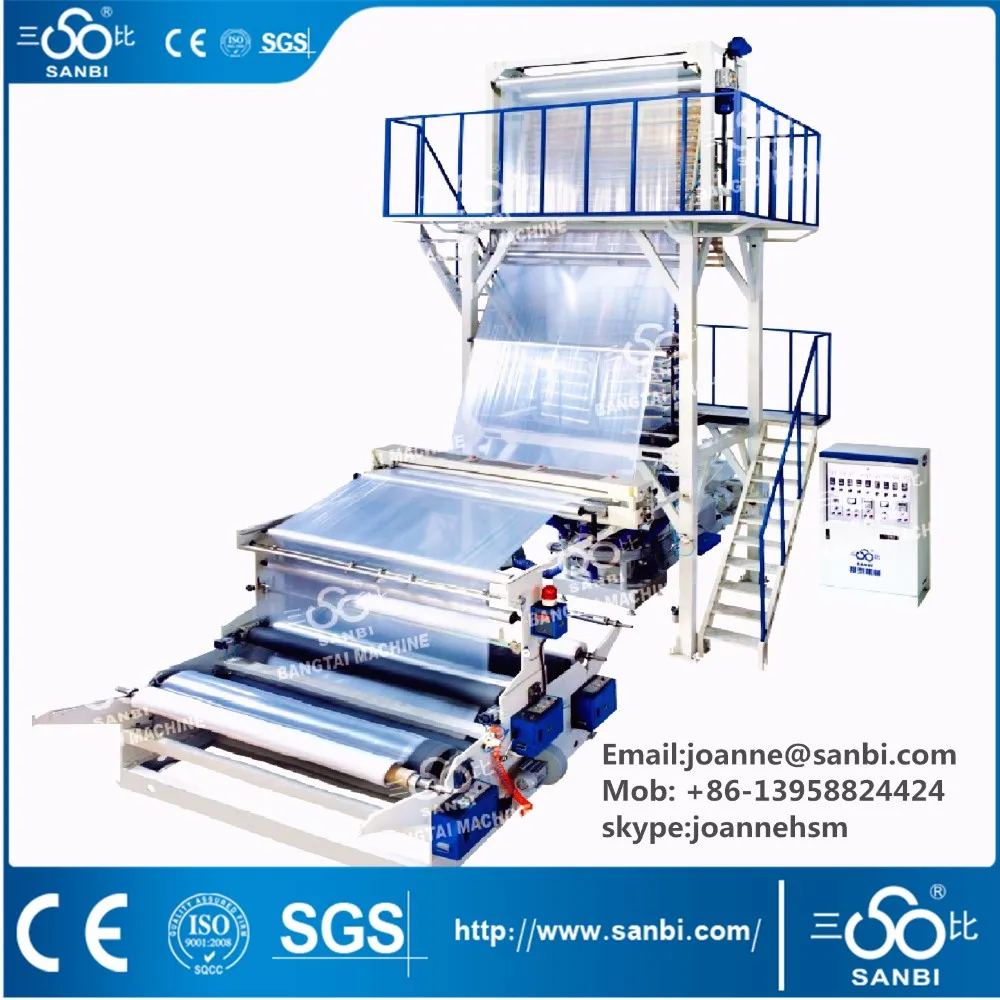

Polyethylene Plastic Agricultural Film Blowing Machine

Product Application

Polyethylene Plastic Agricultural Film Blowing Machine is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and barrel adopt 38 chrome- molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.

Model
SJ-C75
SJ-C90
SJ-C105
SJ-C120
Screw Diameter
75mm
90mm
105mm
120mm
Screw Ratio(L/D)
28:1
28:1
28:1
28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
37KW
45kw
55kw
75kw
Main Output
100 kg /h
150kg /h
190 kg
220kg /h
Max. Folding Width of Film
1500mm
2000mm
2200mm
2500mm
Single-sided Thickness of Film
0.01 -0.08mm
0.01 -0.08mm
0.01 -0.08mm
0.01 -0.1mm
Total Power
70kw
90kw
110kw
150kw
Weight of Machine
5.5T
8T
10T
12T
Overall Dimensions
7100×3200× 6000mm
8000×3500× 8000mm
9500×4000× 9500mm
10200×4200× 12000mm

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3)High speed, high capacity.high quality .

4) widely used for producing laminating film, packing film, agricultural covering film, bag

5) The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.

Certifications
Detailed Images

Machine Parts

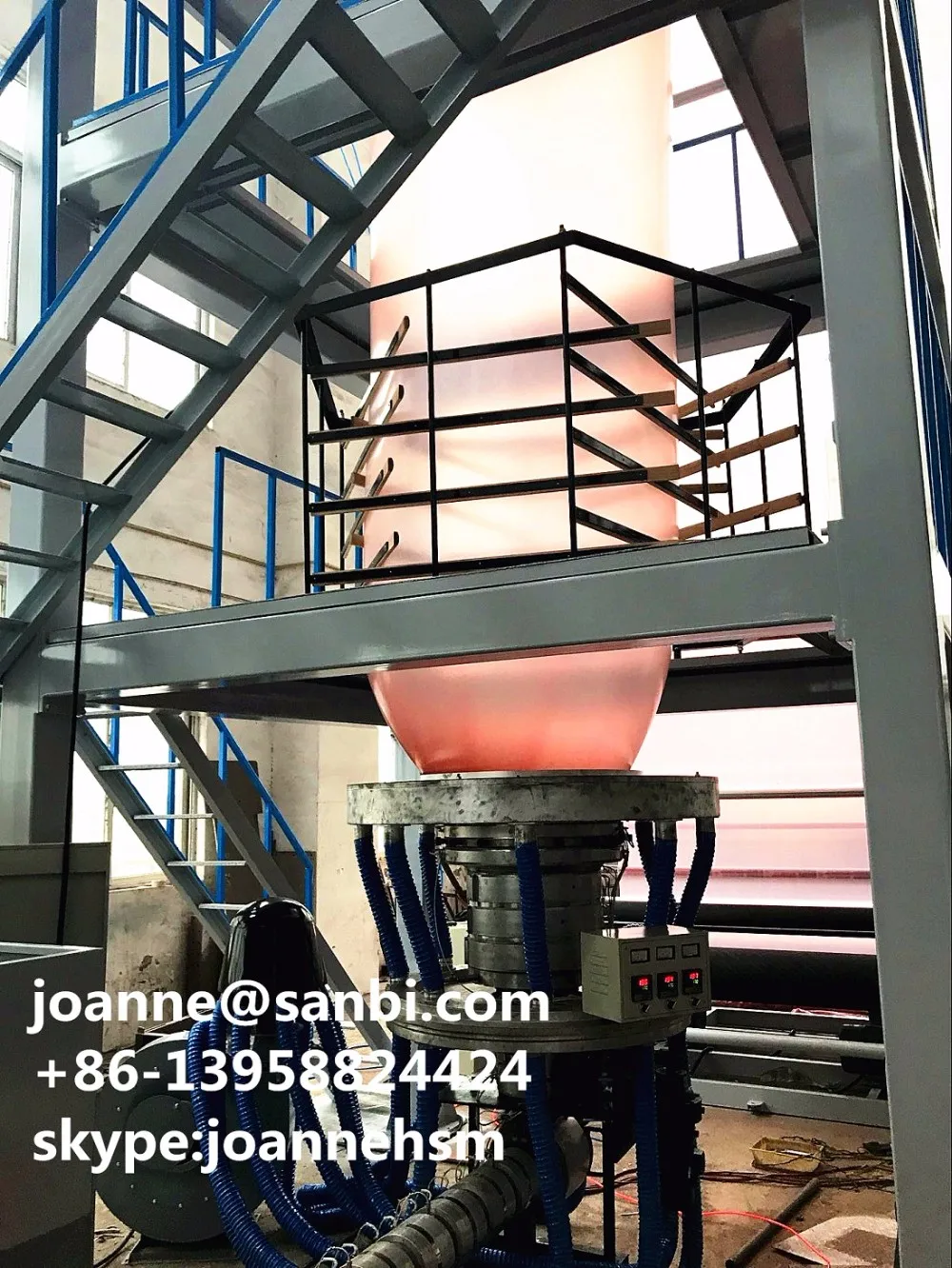

Name: Rotary head

Brand: SANBI

Original: China

continuous 360 degree rotation, make film thickness more even

Main Features

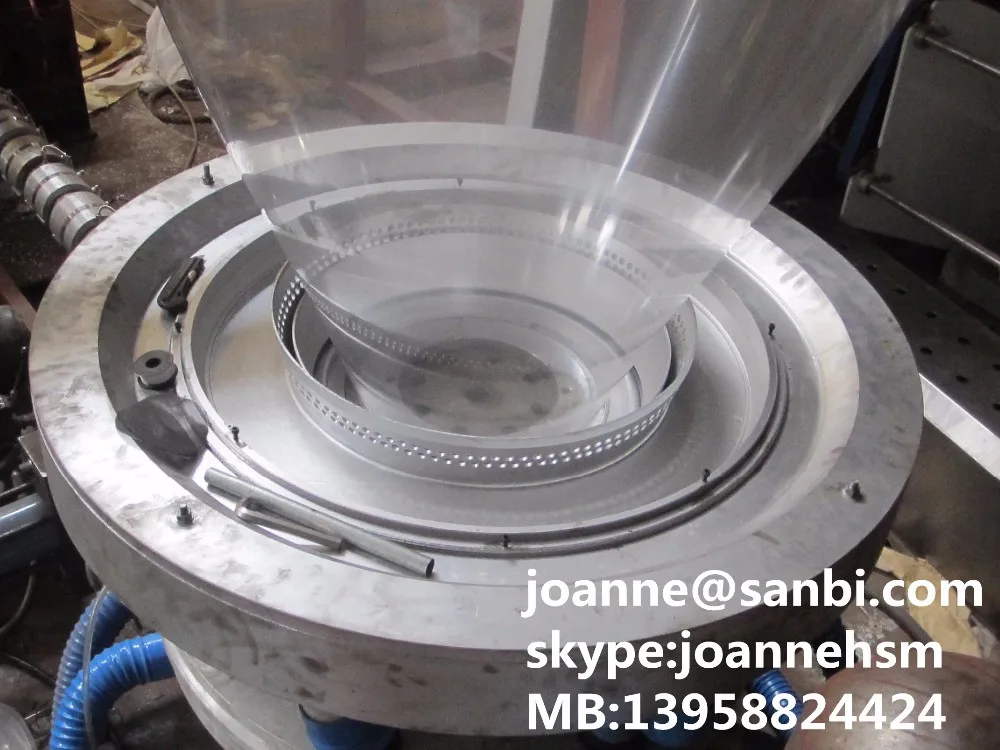

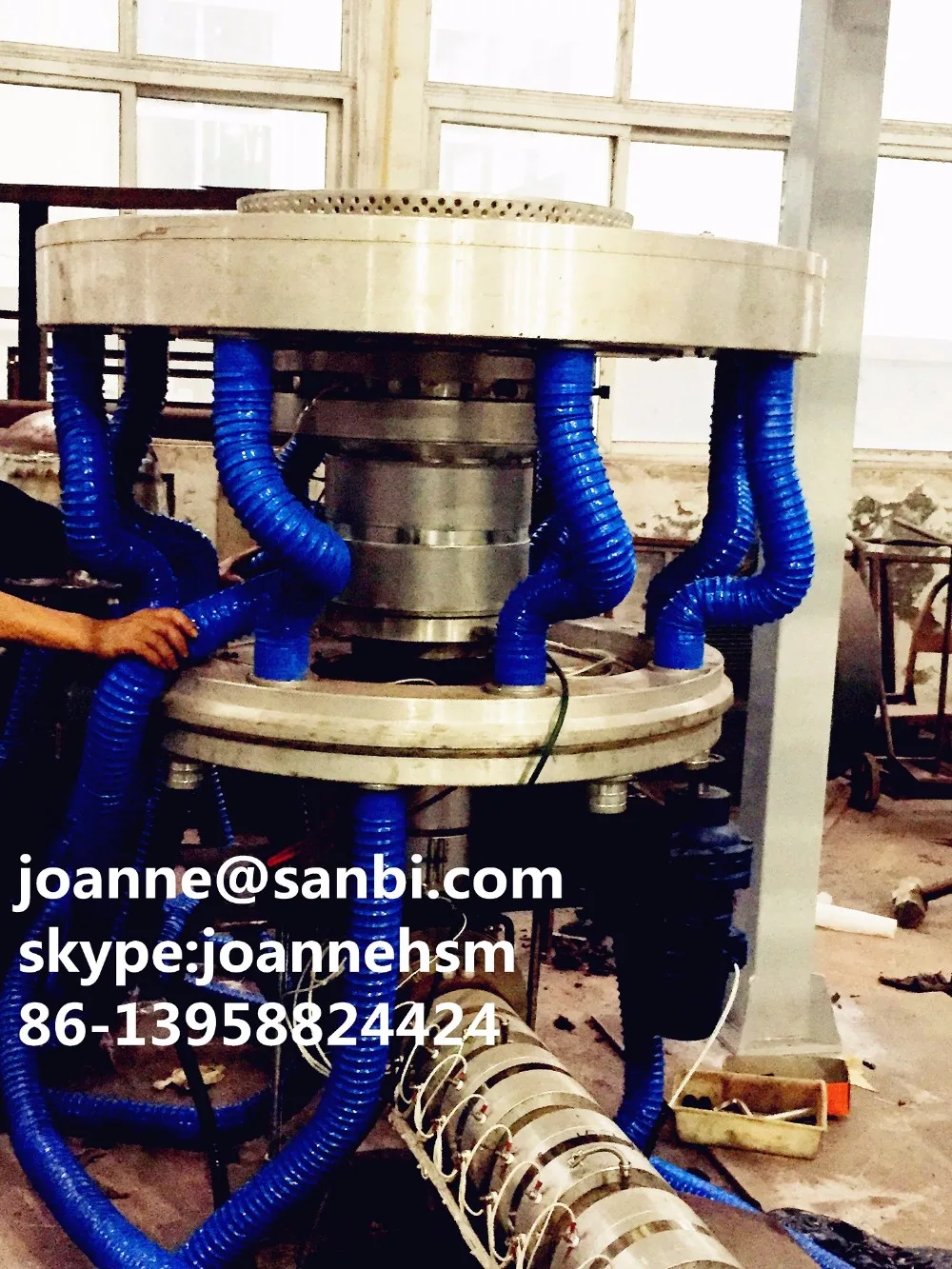

Name: double lips air ring
Brand: sanbi
Original:China
double lips air ring . air supply smooth and make film quality is high

Machine Parts

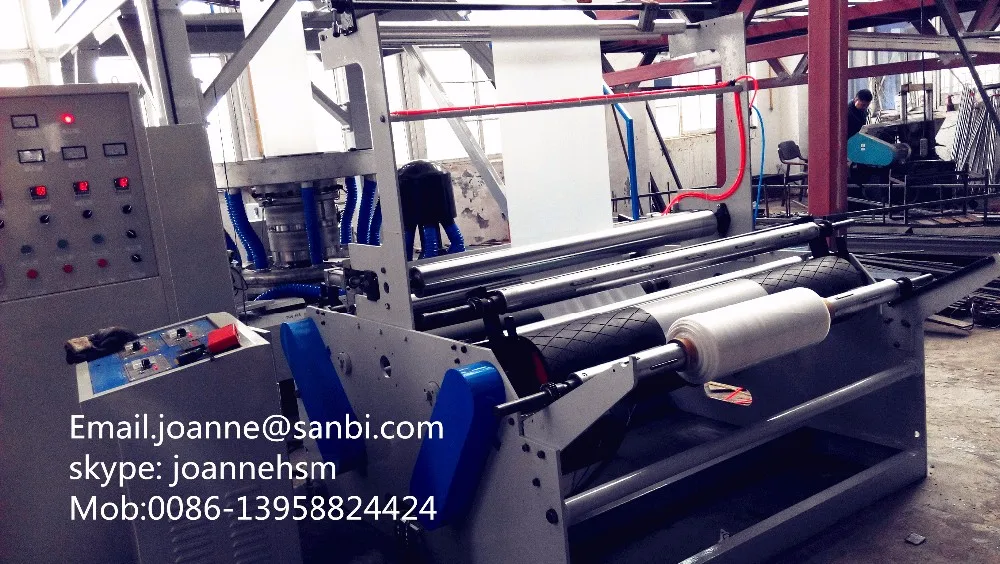

Name: back to back double rewinder
Brand: SANBI
Original: China
 double rewinder. with air shaft.  banana roller.  side slitting and middle slitting knife.  can make sheet roller film in two roller.

Main Features

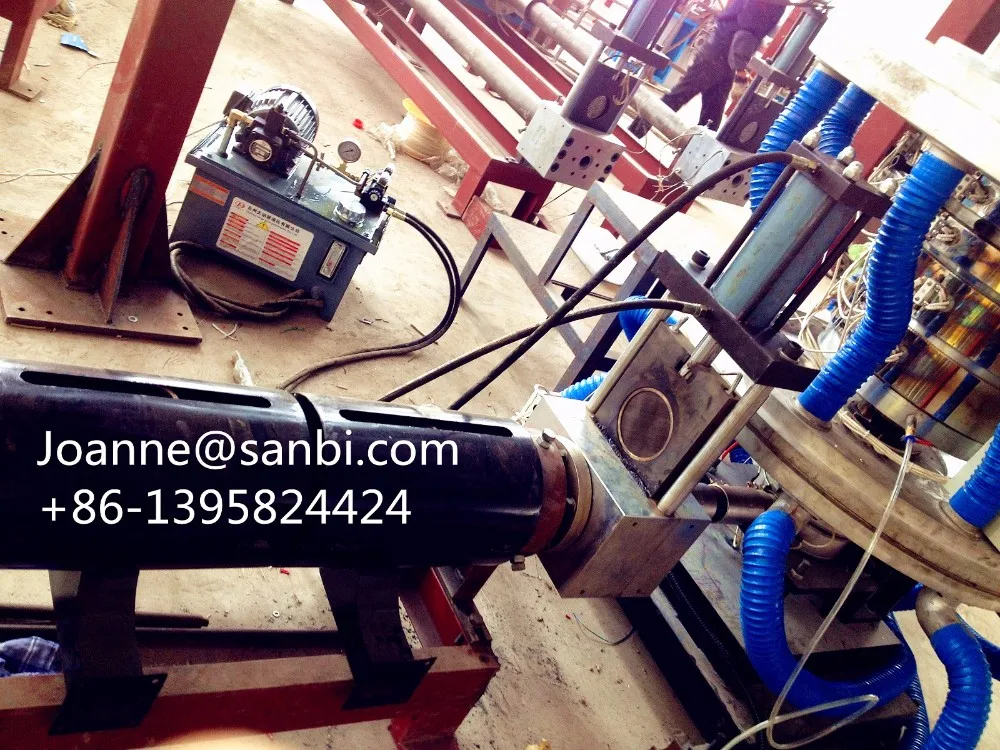

Name: HYDRAULIC NET CHANGER
Brand: SANBI
Original: CHINA
HIGH SPEED NET CHANGER ,

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
according actual packing size
Weight
6-10T



Packaging Details
The normal package is wooden pallet (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
 Size
according actual packing size
Weight
5-10 T



Packaging Details
The normal package is wooden pallet (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

High speed Agricultural Film Blowing Machine

91.8% Response Rate

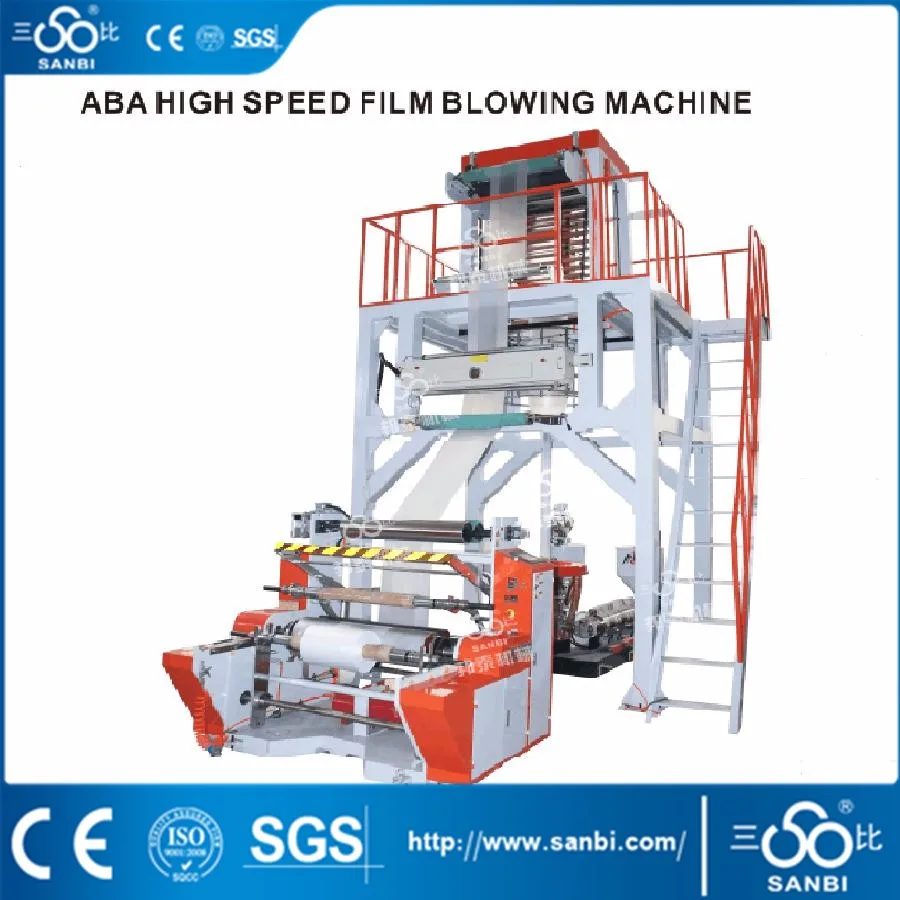

ABA film blowing machine
