Quick Details

  • Type: Flexographic Printer
  • Condition: New
  • Plate Type: flexo
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Sanbi
  • Model Number: CIT -6600-61200
  • Usage: Bill Printer, Label Printer, Paper Printer
  • Automatic Grade: Semi-Automatic
  • Color & Page: Multicolor
  • Voltage: 3Phases 380V 50HZ
  • Gross Power: 50KW
  • Dimensions(L*W*H): 6.0m*2.5m*2.5m
  • Weight: 5000KGS
  • Certification: ISO9001 CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material: film .paper etc.
  • printing colors: 2-8 colors
  • printing speed: 100-120m/min
  • color register: manual
  • printing way: central drum
  • unwinder: with EPC. automatic tension conroller
  • Ceramic anilox roller:: 200-8000LPI
  • Doctor blades: SINGLE face doctor blades
  • Panel: Manual

Packaging & Delivery

Packaging Details standard wooden packing for exporting
Delivery Time 40 days
Product Description

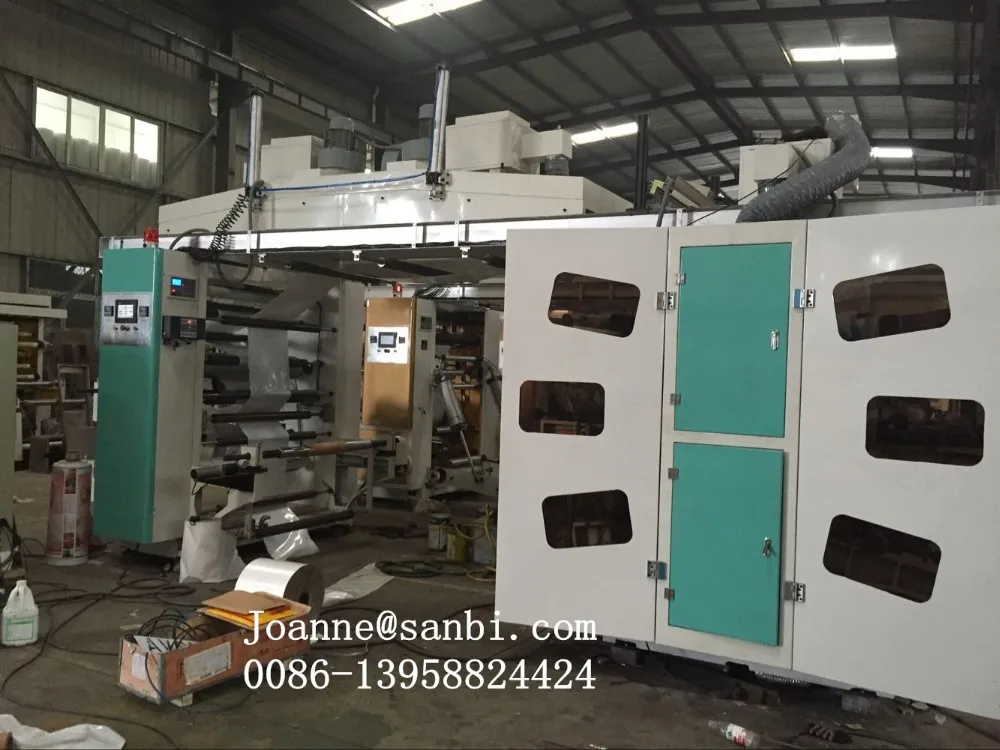

CIE-61200 Central Impression Flexoggraphic Printing Machine


Product Application


1.Machine description:

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.


2.Machine features:

-Method: Central impression for better color registration. With the central impression configuration, the printed material is supported by the cylinder, and greatly improving color registration, especially with extensible materials.
- Structure: Wherever possible, parts are communized for availability and wear-resisting design.
-Dryer: Hot wind dryer, automatic temperature controller, and separated heat source.
-Doctor blade: open type assembly for high-speed printing.
-Transmission: Hard gear surface, high precision Decelerate Motor, and encoder buttons are placed on both control chassis and body for operations convenience.
-Rewind: Micro Decelerate Motor, drive Magnetic Powder and Clutch, with PLC control tension stability.
-Gearing of Printing cylinder: repeat length is 5MM
-1 set of printing cylinder on the machine:40cm

Certifications
Detailed Images

Machine Parts

Name: Automatic  tension control

Brand: SANBI

Original: China

Automatic Tension control for Unwinder and rewinder

Main Features

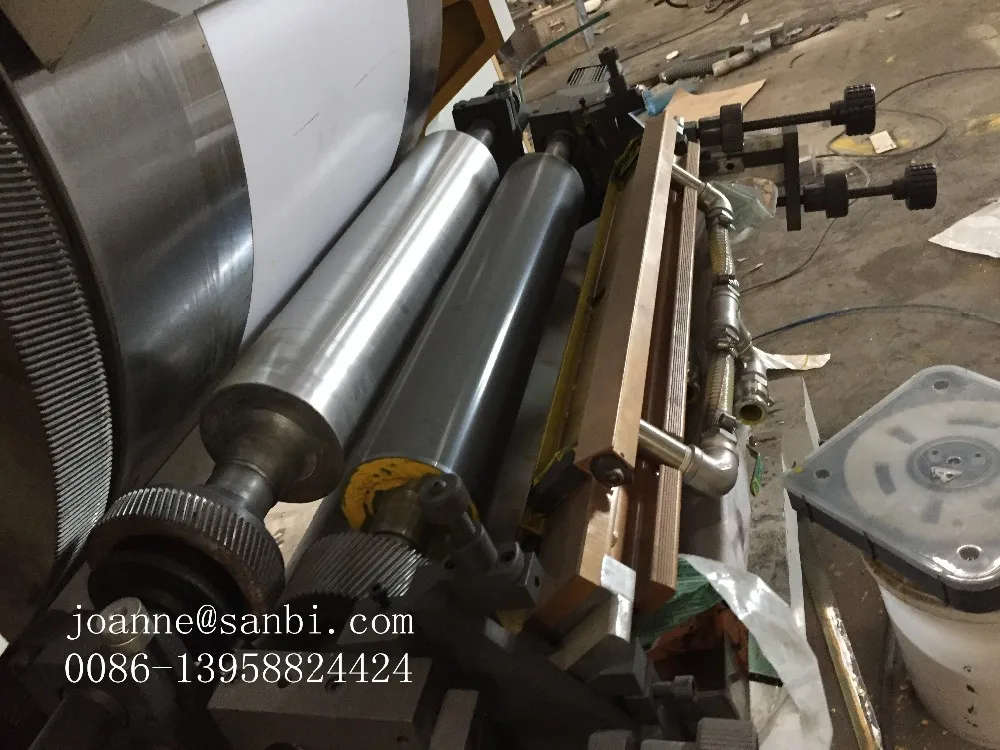

Name: printing unit with closed  chamber type doctor blades
Brand: SANBI
Original: CHINA
chamber type doctor blades. when running high speed, ink difficult come out

Machine Parts

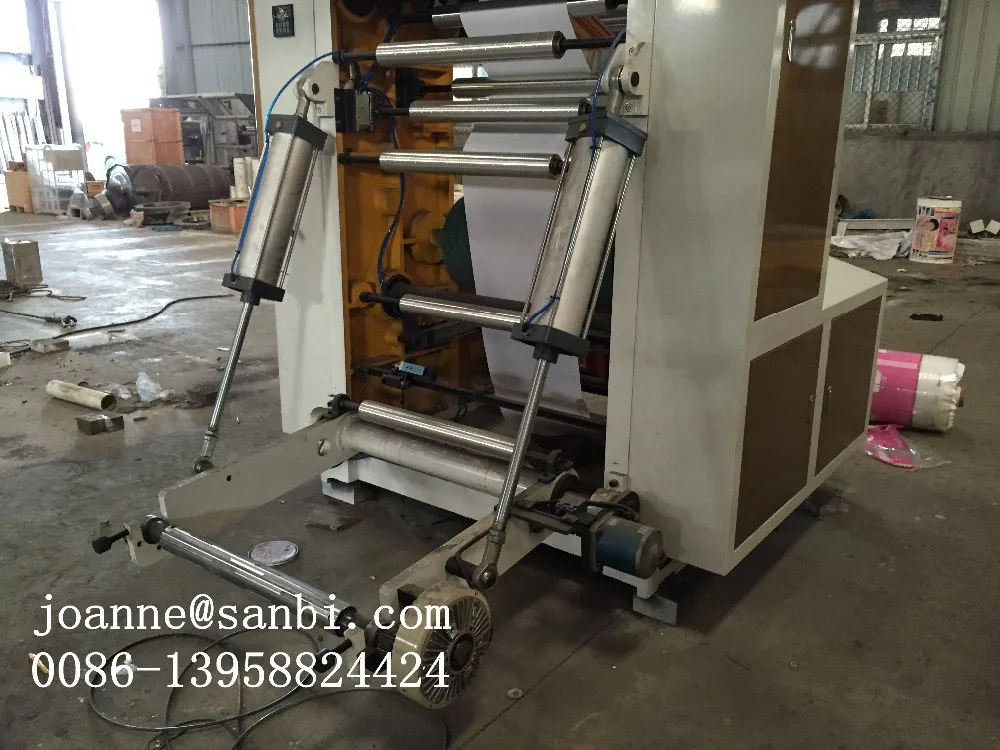

Name: unwinder
Brand: sanbi
Original: China
controller by pneumatic cylinder

Bag sample

Name: video inspections system
Brand: SANBI
Original: China
easy checking printing quality
