Double Color Film Blowing Machine

FOB Reference Price:Get Latest Price
  • 1 - 2
    US $9000.00
  • >=3
    US $8500.00
Supply Ability:
30 Set/Sets per Month
Port:
NINGBO
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Film
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
No
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SANBI
Model Number:
SJ-45X2/50X2/55X2
Voltage:
380V/3PH/50HZ or made special
Power(W):
30-45kw
Dimension(L*W*H):
4800X1900X3800mm
Weight:
2-3T
Certification:
CE ISO9001:2000, SGS
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Double Color Film Blowing Machine
Model:
SJ-45X2/50X2/55X2
Material:
HDPE ,LDPE ,LLDPE
Color:
Blue with white or paint special
Screw Size:
45/50/55mm
Main motor:
15/18.5/22KW
Gearbox size:
146/173/173 model
Extrusion:
20-80KG/H
Single Thickness:
0.01-0.10mm
Certificate:
CE,ISO9001:2015,SGS
Packaging & Delivery
Packaging Details
Double Color Film Bloiwing Machine:
Standard wooden pallet or naked with stretch film packing
Delivery Time
Double Color Film Bloiwing Machine:30 days
Product Description

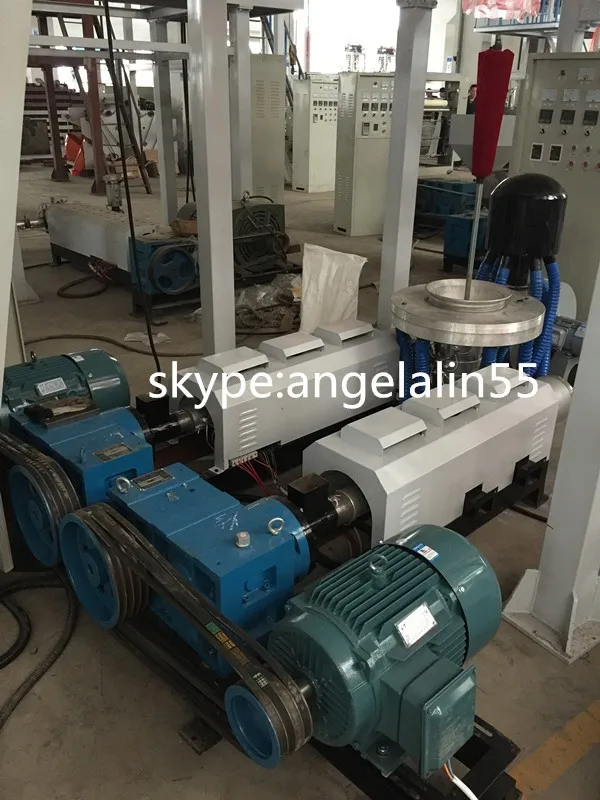

Double Color Film Bloiwing Machine 's   screw and barrels  are made of bimetallic, high quality alloy steel through nitrided and precision finishing with the best hardness and corrosion resistance., Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.

This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.

Model
SJ-45X2/600
SJ-50×2/800
SJ-55X2/1000
Name
Double Color Film Bloiwing Machine
Screw Diameter
45MMX 2
50mmx2
55mmx2
Screw Ratio
(L/D) 28:1
L/D28:1
L/D28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
15KW
18.5KW
22KW
Power of traction main motor
1.5kw
1.5KW
1.5kw
Heating power(kw)
15kw
18.5kw
25kw
Main Output
35kg /h
50kg /h
65kg /h
Max.Folding Width of Film
100-600mm
200-800mm
300-1000mm
Single-sided Thickness of Film
0.01-0.1mm
0.01-0.1mm
0.01-0.1mm
Overall Dimensions
4800x1900x3800mm
5500x2100x4700mm
6500x2300x5200mm
Die diameter
80mm
100mm
150mm

Main Features

1)one pc gearbox or two pc gearbox ,two pc screw and barrel ,one pc die head to come out two color stripped  roll film.

2) Adopting advanced world famous brand components in electric parts and main parts like main motor ,inverter.

3) screw bimetallic ,alloy material to use longer span life .

4) AB structure die to make two color stripped or one color film .

5) 30 years history in manufacturing film blowing machine ,more specilized and more stable for the machine manufacturing .

Certifications

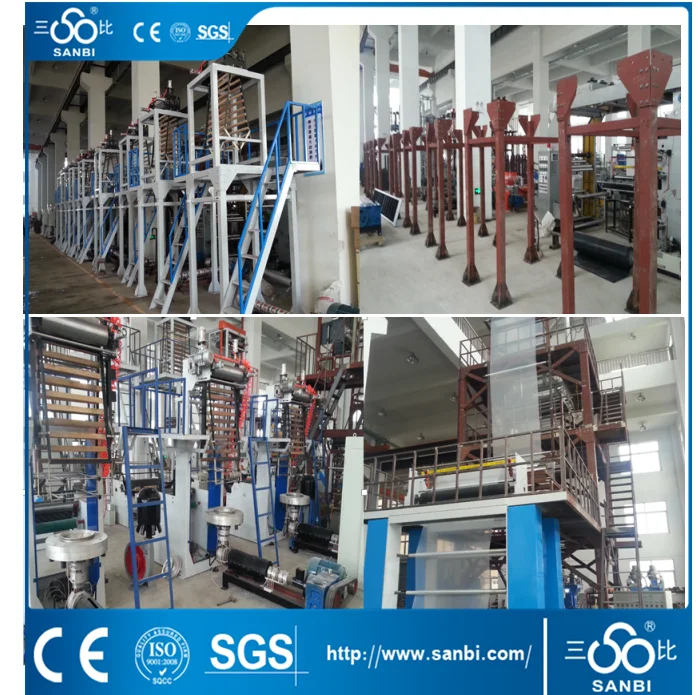

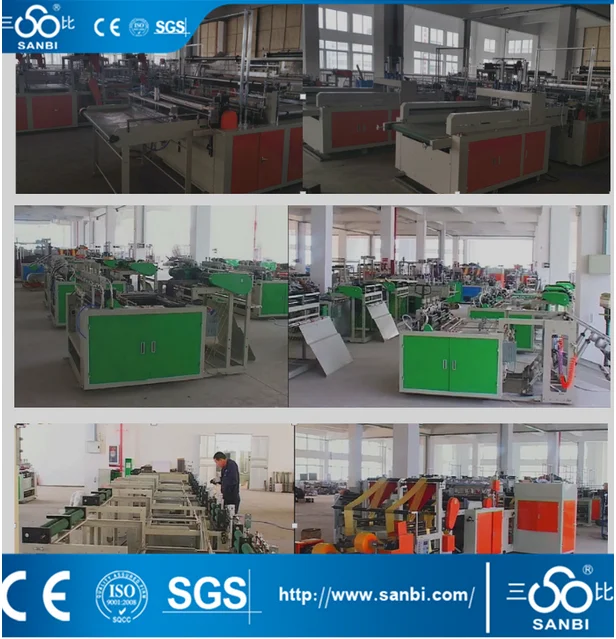

Company Picture
