Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: No
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANBI
  • Model Number: SJ-A50/55/65/65-1
  • Voltage: 380v,50hz three phase or as per clients
  • Power(W): 20-40KW
  • Dimension(L*W*H): 5600x2200x4700mm
  • Weight: 1800-2800KGS
  • Certification: CE,ISO9001:2000,SGS
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: small plastic bag making machine
  • Color: white with blue or as per client
  • Machine type: MONO layer
  • Material: LDPE ,HDPE ,LLDPE
  • Screw Diameter: 50/55/65mm
  • Main motor: 11kw/15kw/22kw
  • Capacity: 30-100KG/H
  • Machine kind: Plastic bag machine

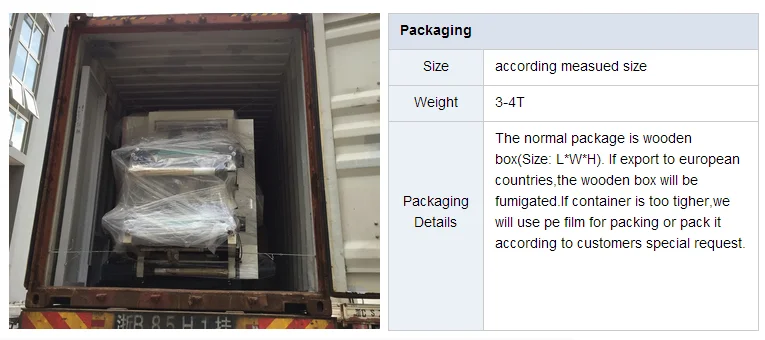

Packaging & Delivery

Packaging Details Sanbi Small Plastic Bag -making machine For Sale:
Standard seawothy wooden pallet or naked with stretch film
Delivery Time Sanbi Small Plastic Bag -making machine For Sale:15 days

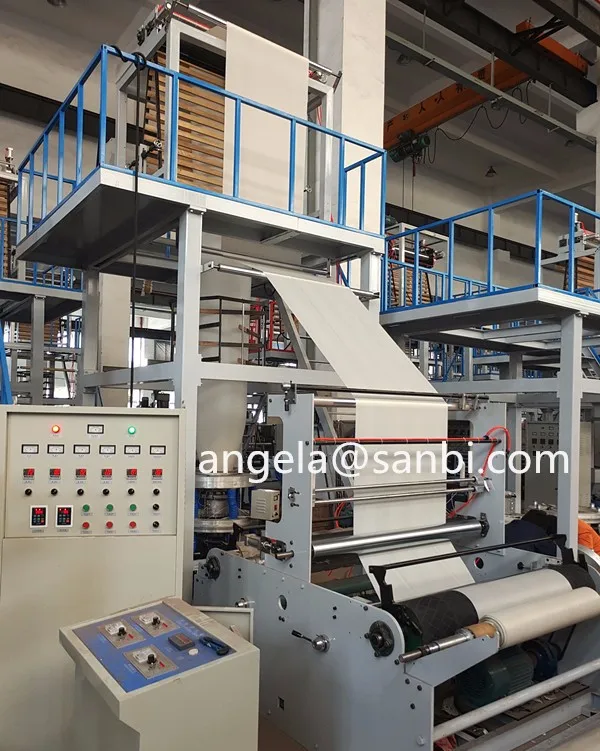

Product Description

Product Application

Plastic Bag -making machine 's  screw and barrels are made of bimetallic material ,quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Model
A50
A55
A65
A65-1
Name
Small Plastic Bag Making Machine
Diameter of screw
φ50
φ55
φ65
φ65
Rcduced diameter of film(mm)
100-600
200-800
300-1000
400-1200
Single-sided Thickness of Film
0.008-0.08mm
0.008-0.08mm
0.008-0.08mm
0.008-0.08mm
Max.Extrusion(Kg/h)
35
50
65
80
L/D
28:1
28:1
28:1
28:1
Power of main moto(kw)
11
15
22
22
Power of Tracion main moto(kw)
1.5
1.5
1.5
2.2

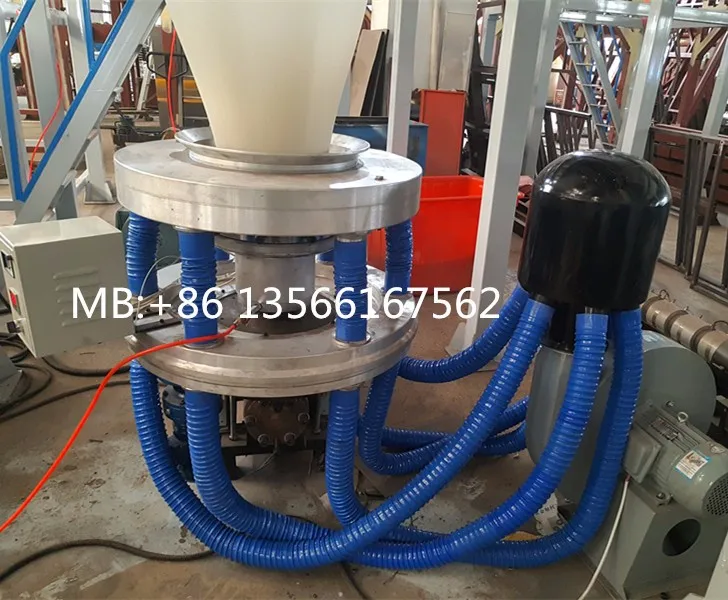

Die head
Φ60 , 120
Φ80 , 150
Φ120 , 200
Φ150 , 250
Heating Power(kw)
11
13
19
21
Outline diameter(L x W x H) (mm)
4800 x 1900 x 4100
5500 x 2100 x 4700
6500 x 2300 x 4900
6500 x 2500 x 5600
Weight(T)
1.5T
2T
2.3T
2.6T

Main Features

1) Simple structure  ,easy in installation and maintation.

2) Adopting advanced world famous brand electric parts and main parts like main motor ,inverter and etc.

3) Bimetallic,alloy  material screw to be more durable when working.

4) Traction  with pneumatic cylinder adjust the pressure roller more easlier .

5)27 years manufacturing in film blowing machine ,bag making machine ,printing machine ,more stable for the machine.

Certifications
Detailed Images

Machine Parts

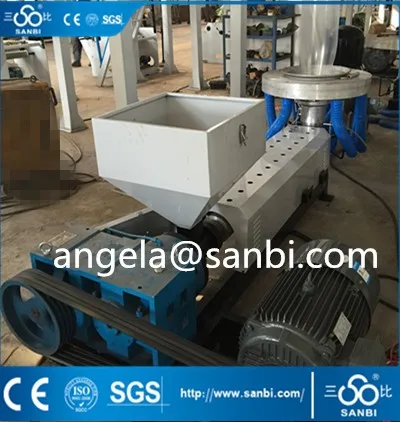

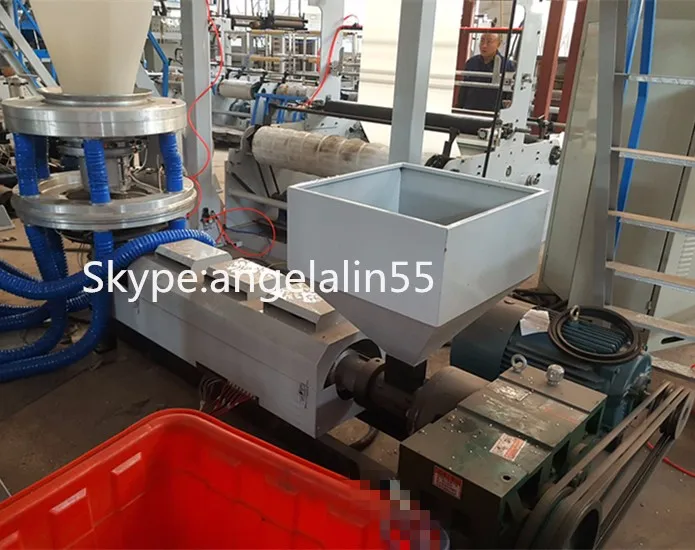

Name: MAIN MACHINE

Brand: SANBI

Original: CHINA

Bimetallic ,alloy mateiral screw ,National standard hard tooth gearbox with oil pump ,aluminum heater make the main machine work more stable .

Main Features

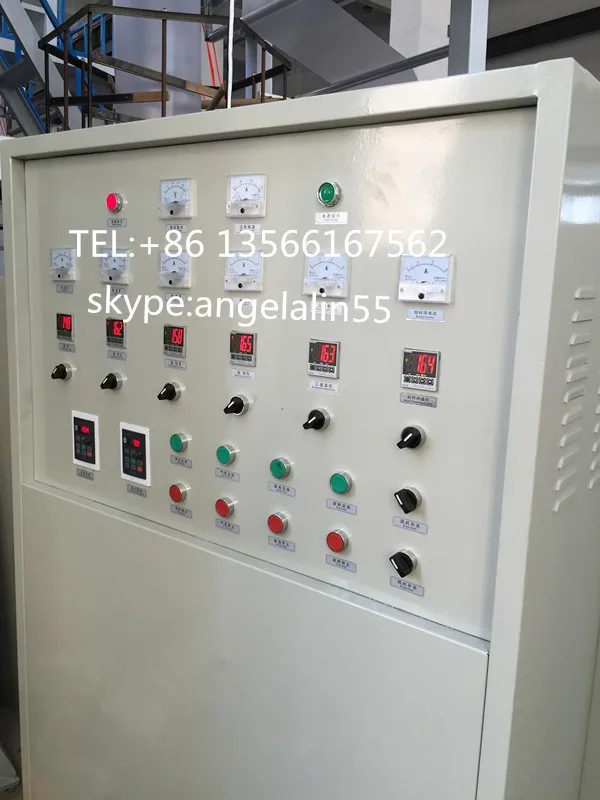

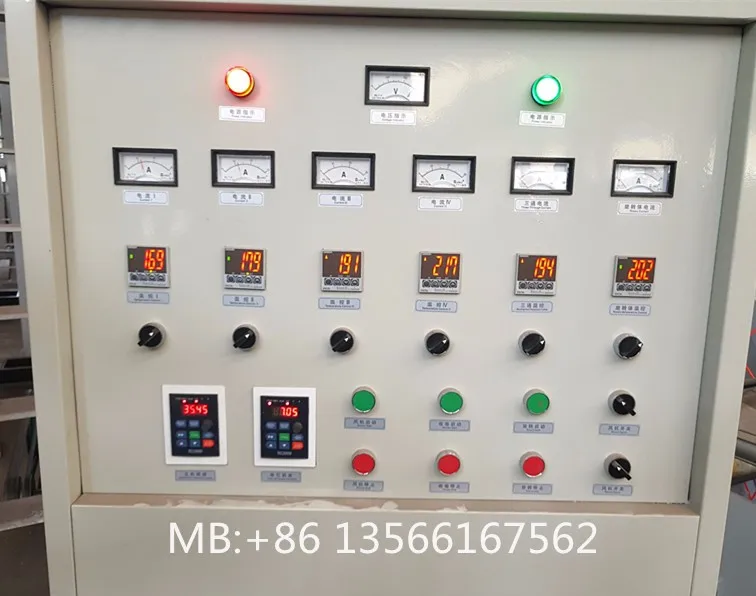

Name: CONTROL CABINET
Brand: SANBI
Original: CHINA
 Schneider brand relay ,button and switch  and contactor and omron brand temperature meter make the span lift much longer and stable.

Machine Parts

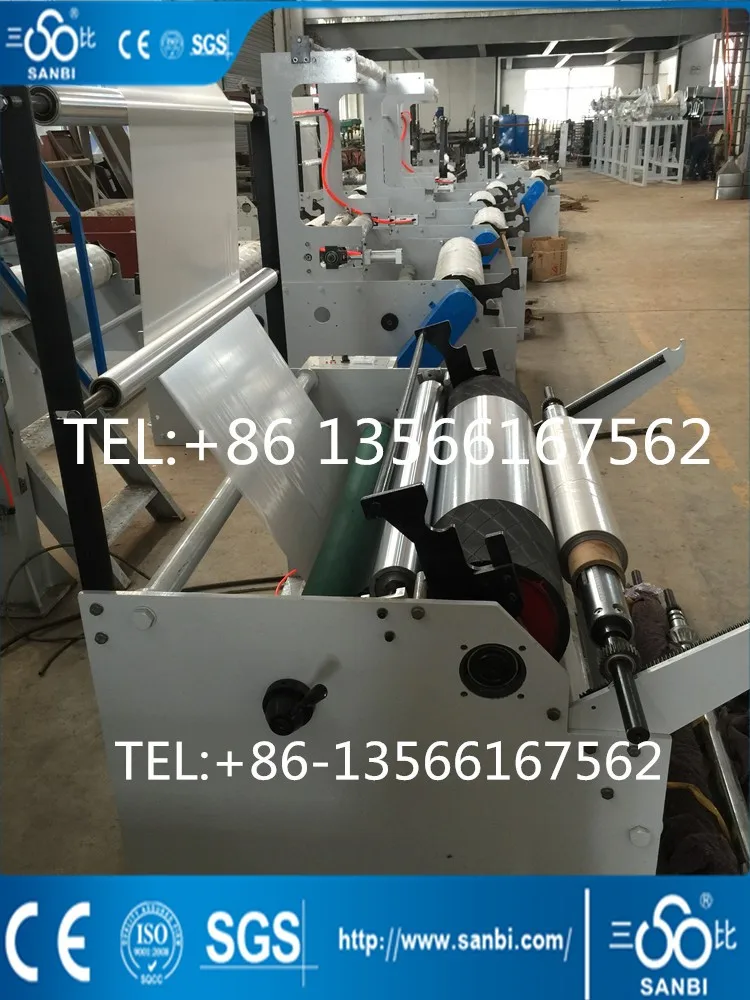

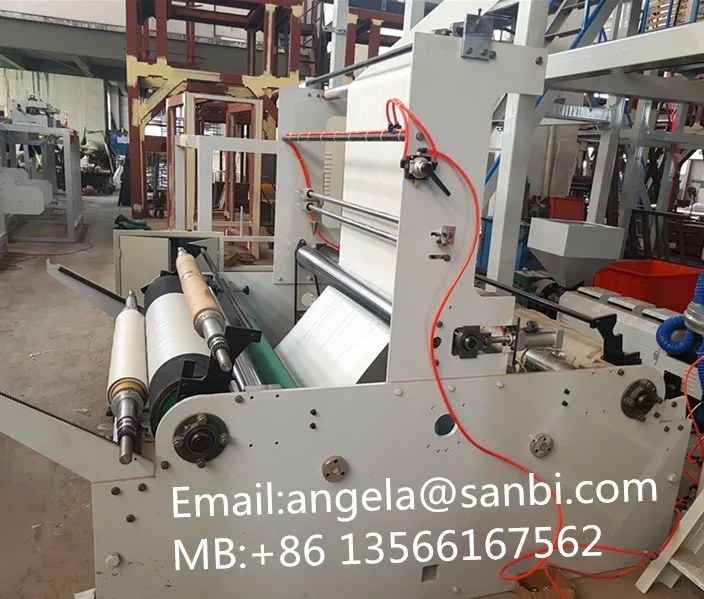

Name: SINGLE REWINDER
Brand: SANBI
Original: CHINA
 Equip with air shaft ,much easlier to discharge the finished roll film ,with banana roller .metal roller ,rubber roller to make film more flat when rewinding .

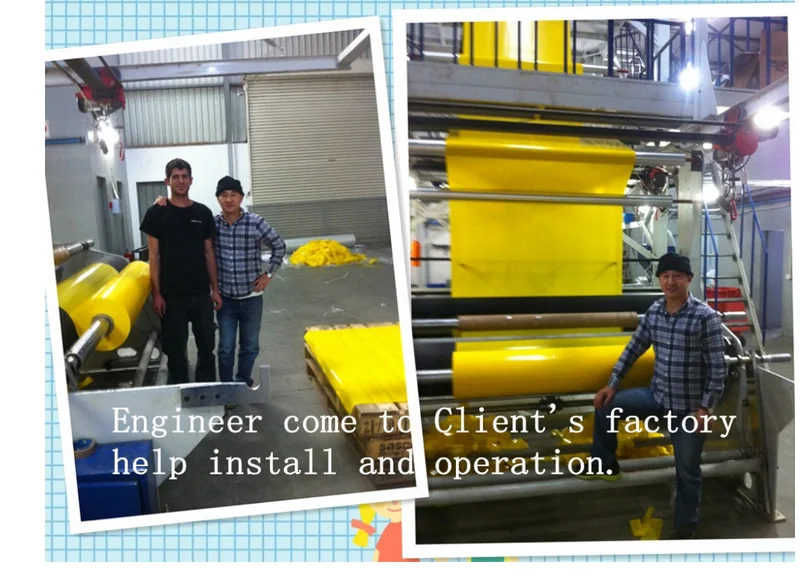

Our Service
