Quick Details

  • Condition: New
  • Application: Plastic Recycling
  • Automatic Grade: Semi-Automatic
  • Production Capacity: 250-300KG/H
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANBI
  • Model Number: SJ-AW MODEL
  • Voltage: 380V 50HZ THREE PHASE
  • Power(W): 100KW
  • Dimension(L*W*H): 5000X6000X2800mm
  • Weight: 3500-4500KG
  • Certification: CE ISO9001
  • Warranty: 1 Year Guarantee
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Polyethylene Plastic Recycling Granulator Machine
  • Color: White with Blue
  • Suitable Material: PE,PP
  • Capacity: 250-300kg/h
  • Model: SJ-AW120/140
  • Main screw: 120/140
  • output: 150-300kg/h
  • Certificate: CE,ISO9001:2000

Packaging & Delivery

Packaging Details: 2017 New Polyethylene Plastic Recycling Granulator Machine:
Standard seawothy wooden pallet packing .
Delivery Detail: 30 days
Product Description

Product Application

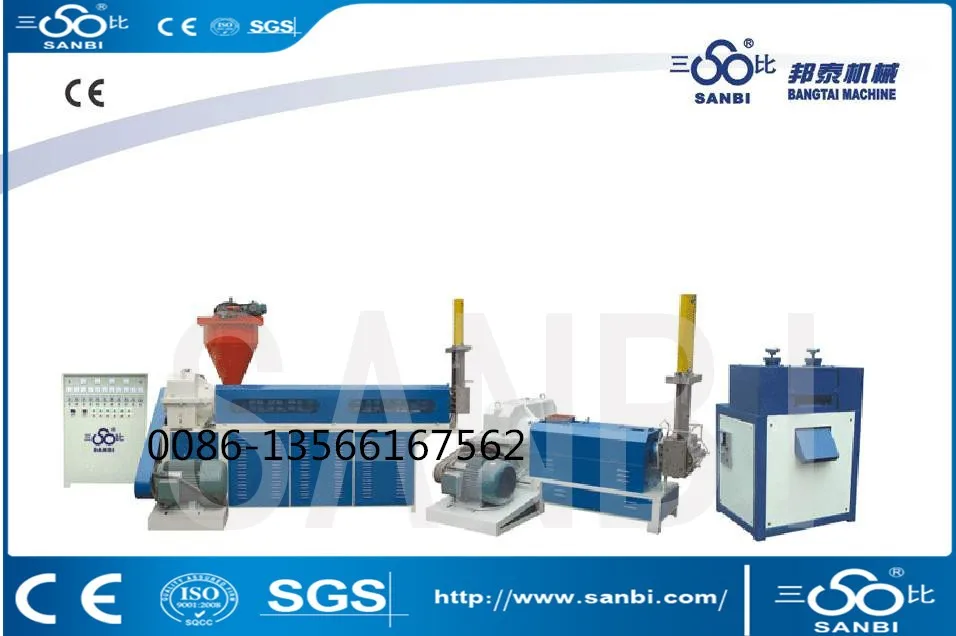

 Polyethylene Plastic Recycling Granulator Machine:

I. Main technical Features of Equipment

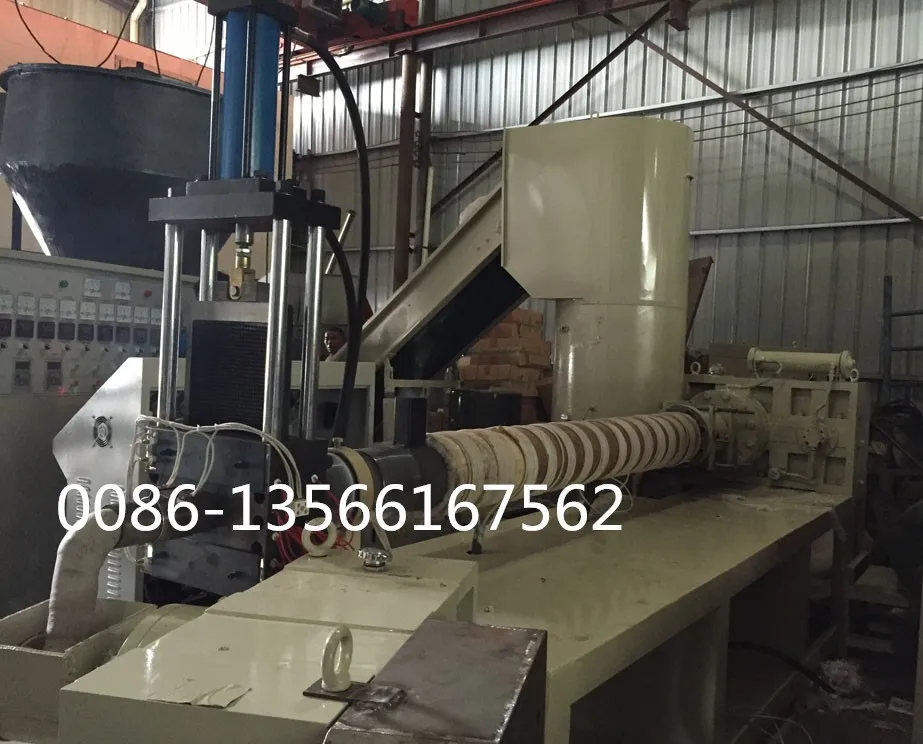

The straight-cutting and plastic extruder is mainly composed of double-level venting extruder underwater cutting die, flexible cutter seat, automatic vertical de-watering device, vibrating screen, air-feeding system, material collector. The traditional recycled plastic extruder always do cutting after extruding and curing the plastic strip. While the straight-cutting plastic extruder is a new type of machine cutting the granular underwater when the plastic in the melted state, which have abvious advantages against the solid cutting technology.

1.As the plastic is cooled and solidfied after cutting in the melted state, no dust will be formed during cutting and the cutting will have good quality with regular shape, better for packing and transportations.

2.The output and cutting speeed can be adjustable according to the volume of extrusion, to change the size of the cutting, manual adjustment of the number of knife holders can be used to change the size and shape off cuttings.

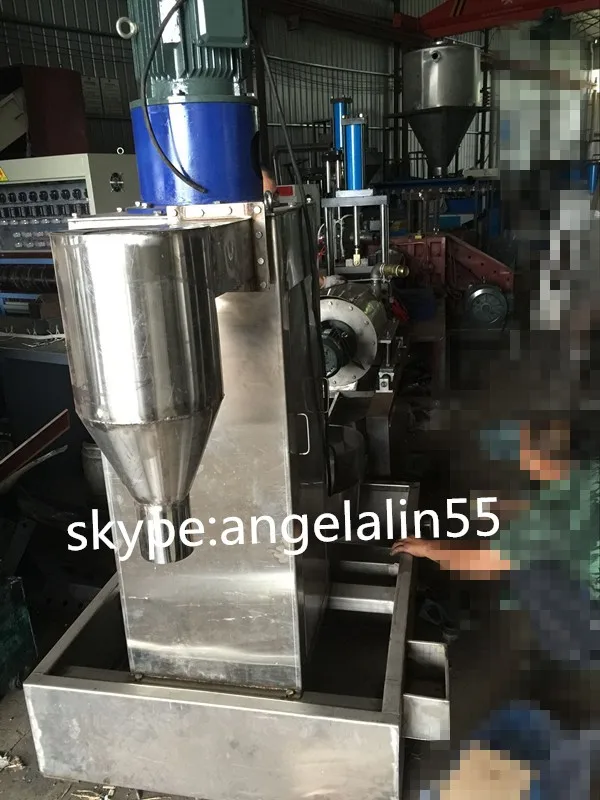

3.The straight -cutting and underwater cutting process allows the molten plastics to be out and cooled directly, so the water can be removed efficiently after high-speed dewatering process provinga better drying effect. The subsequent process is equipped with the vibrating screen to cool down the granule, the imputer granule will be removed automatically so the automation and easy operation can be achieved for the making process.


2.Process:

Convey table —— cumularsharolith —— NO.1 Extruder ( The die and hydraulic screen exchanger)——NO.2 Extruder ( The die and hydraulic screen exchanger)——water ring pelletizer——centrifugal dewatering machine——Blower and the silo——electric control cabinet

3.Spec:

Model
SJ-AW120
SJ-AW140
Name
 Plastic Recycling Granulator Machine:
Diameter of screw
120mm
140mm
Screw L/D
22:1
22:1
Screw rotary speed
10-110RPM
10-110RPM
Main motor power
37KW
55KW
Output
150-200KG/H
250-300KG/H
Machine weight
3500KG
4500KG
Outline dimension(LXWXH)
5000X6000X2800mm
6000x6500x2800mm

Main Features

1)Adopting the granulate and recycling machine in line to make higher output.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Adopting  the water ring heat sealing is suitable for PE material

4) For the PE ,PP material ,it needs water cooling not water ring heat sealing this kind.

5)It is consisted of conveyor ,granulator ,recycling machine and dewatering machine.

Certifications
Contact Information
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T

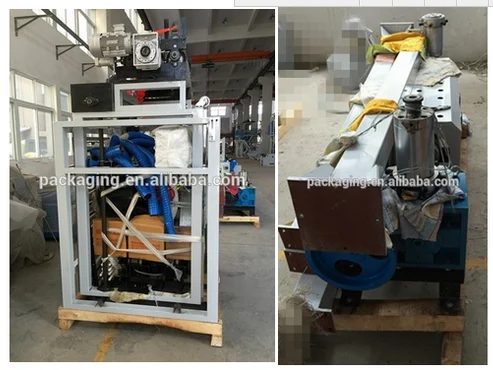

Packaging Details

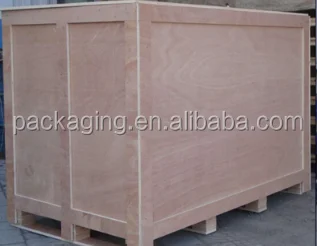

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
