Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: LDPE ,HDPE ,MLLDPE ,LLDPE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Semi-automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANBI
  • Model Number: SJ-GS1200/1500/2000
  • Voltage: 380V50HZ three phase or special made
  • Power(W): 100-300kw
  • Dimension(L*W*H): 9000X7000X10000mm
  • Weight: 20T
  • Certification: CE ISO SGS
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Three layer film blowing machine
  • Model: SJ-GS1200/1500/2000
  • Feature: Three layer film blowing machine with IBC
  • Color: Blue with white
  • IBC: Include
  • Haul Off rotary device: Include
  • Automatic double rewinder: Include
  • Certificate: CE,ISO9001;2000,SGS
  • Material: LDPE ,HDPE ,MLLDPE

Packaging & Delivery

Packaging Details: CE Certificated ABC three layer film blowing machine with IBC
wooden case /wooden pallet packing
Delivery Detail: 60-90 working days
Product Description

Product Application

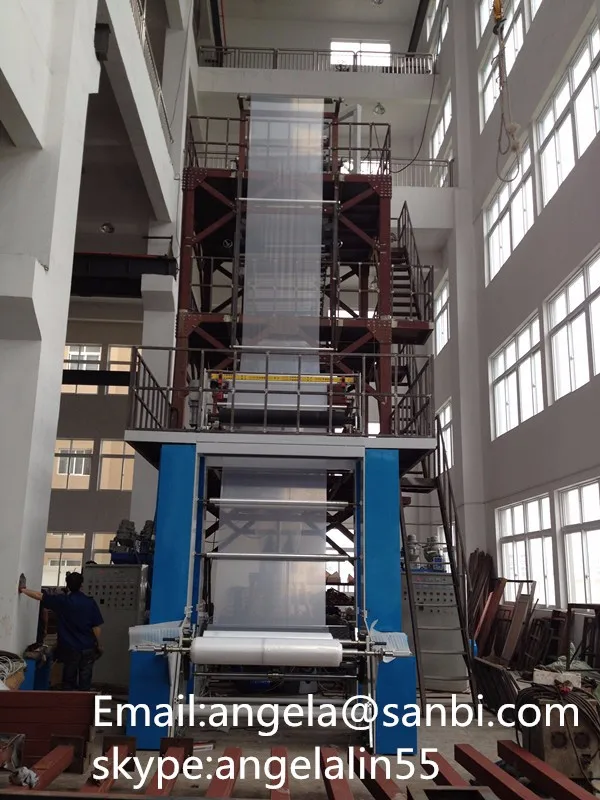

This three layer  film blowing machine set is to satisfy the customer's requirements of high quality, high out put film blowing equipment. It adopts the extruder with force feeding function, precision type ceramic heater, precision type double vents air ring, horizontal type rotary traction system, IBC inner cooling system, fully automatic surface friction type double cut double winders, computer concentrate control system, advanced technique and equipments. Compare with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consume, easier operation. It can be widely used into various kind of high transparence packing film manufacture, and create the considerable economic benefit for you.

Type
SJ55-GS1200
SJ65-GS1500
SJ75-GS2000
Max. Lay Flat Width (mm)
1200mm
1500mm
2000mm
 Film Layer
 Three layer
 Film Thickness (mm)
0.02-0.20mm
 Max. Output(kg/h)
150
200
300
 Raw Material
LDPE ,LLDPE ,EVA ,MLLDPE
 Screw Diameter(mm)
55mm/60mm/55mm
65mm/70mm/65mm
75mm/80mm/75mm
 Screw L/D Ratio
30:1
 Screw Max. Rotation Speed (r/min)
100
 Extruding Driving Power(kw)
15kw/22kw/15kw
22kw/30kw/22kw
37kw/45kw/37kw
Die Structure
ABC three layer film blowing machine with IBC Film Tube Inner Cooling System
 Air-ring Structure
Double vent air ring
 Reversing Haul-off System
Horizontal± 180°
Take-off Wide-up Speed (m/min)
40-120
Total Power(kw)
110
140
240
 Overall Dimensions(mm)
8000X5000X8000MM
8000X5500X10000MM
9000X6000X12000mm

Main Features

1) WIth IBC to inner cooling the film to make the film more transporant and high output .

2) Adopting advanced world famous brand components in  electric parts and main parts. like main motor ,inverter .

3) Haul off horizontal rotary device to make the film more even .

4) Automatic double rewinder to auto cut the finished film and roll changer automatically  to save the worker quantity .

5)27 years in the manufacturing field of film blowing machine  with CE,ISO9001:2000,SGS certificate   to be more formerly .

CCertifications
Detailed Images

Machine Parts

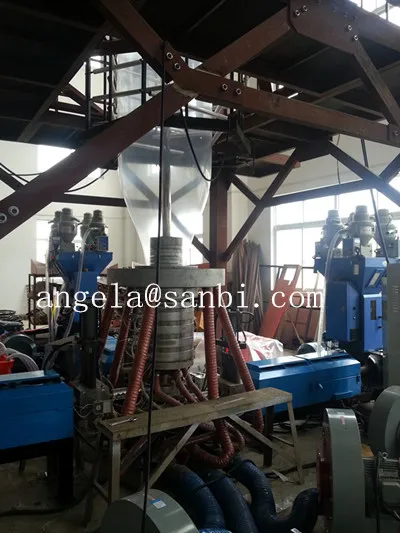

Name: MAIN UNIT

Brand: SANBI

Original: China

ABC structure die with IBC inner cooling the die to make the film more transparent and more output.

Main Features

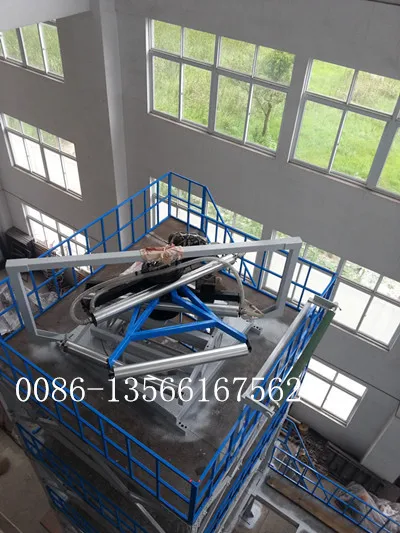

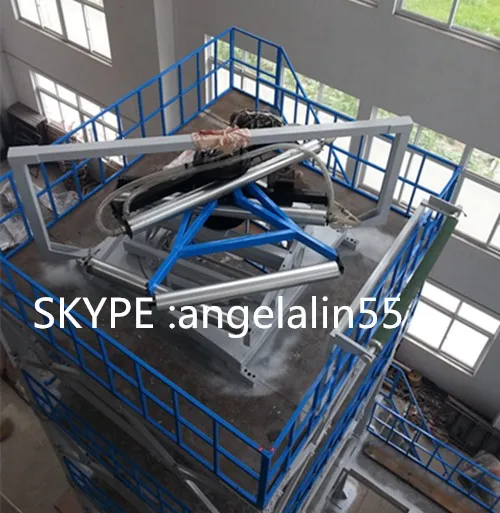

Name: Haul off horizontal rotary unit
Brand: SANBI
Original: China
Horizontal± 180° reverse to keep the film more even .

Machine Parts

Name: Automatic Double rewinder
Brand: SANBI
Original: China
Automatic double rewinder to auto cutting the finished film and roll change automatically to save the worker quantity and better rewinding products.

Our Service

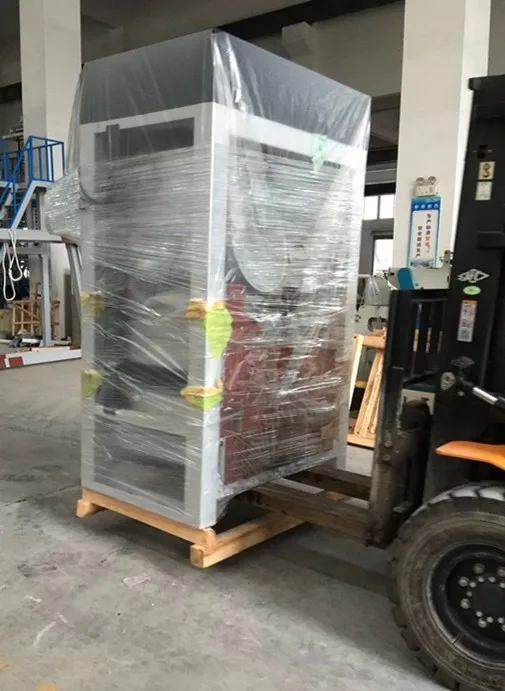

Packing & Delivery
