TAIWAN TYPE high speed MINI film blowing machine (CE)

FOB Reference Price:Get Latest Price
US $13,000-18,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
Ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Film
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SANBI
Model Number:
SJ-T50
Voltage:
380V/50HZ
Power(W):
18.5KW
Dimension(L*W*H):
2200*1800*2300
Weight:
1800kgs
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Certificate:
ISO9001, CE
Extruding type:
Single layer
Raw material:
LDPE,, .HDPE
Head:
single layer
rewinding:
manual cutting and change roller
Capacity:
55kgs/h
Screw:
High speed screw
Packaging & Delivery
Packaging Details
standard packing(wooden case, wooden block, nude packing), or as per your requirement
Delivery Time
20-30 WORKING DAYS
Product Description

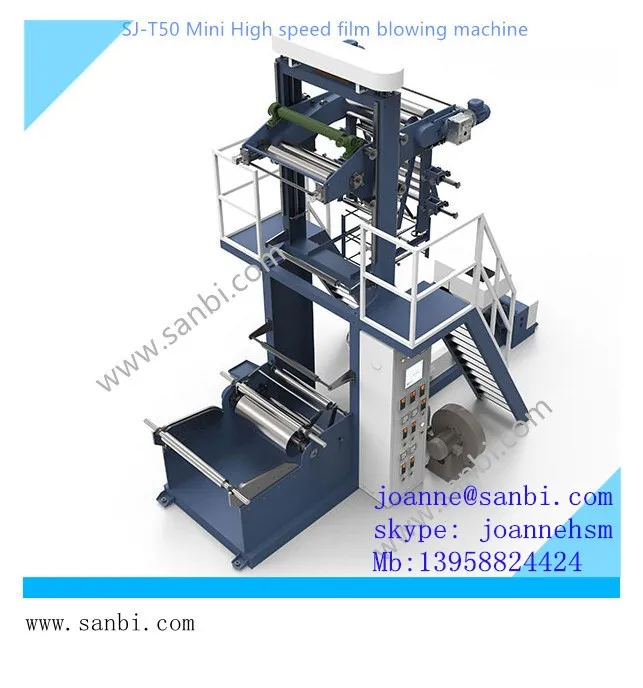

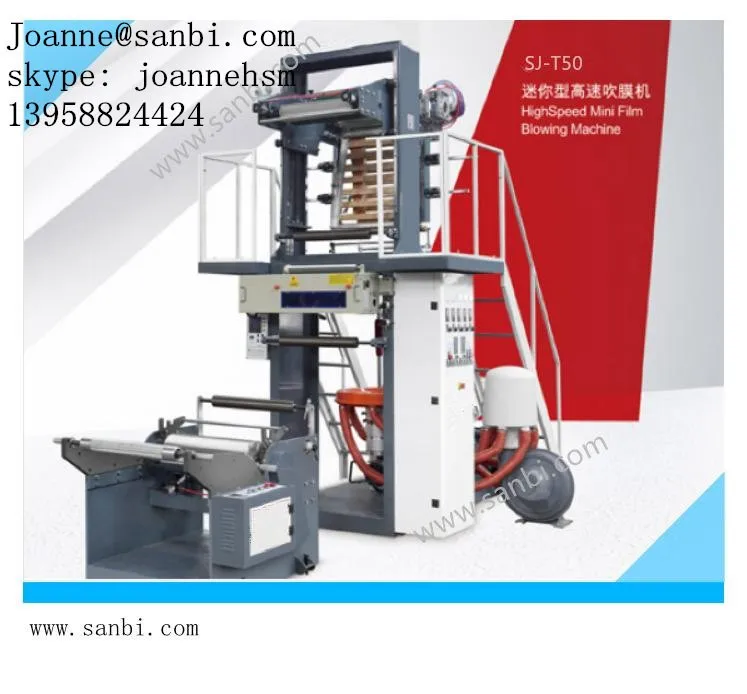

 SJ-T50 TAIWAN TYPE HIGH SPEED MINI FILM BLOWING MACHINE


Product Application

PRODUCT INFORMATION
Categories:    Film Blowing Machine
Brand:    Sanbi film blowing machine
Model:     Mini Model SJ-T45/50
Function:    Polyethylene film
Inverter:    Delta / Shanghai NS Brand
Main Motor:    Simens / Nanjing Weinuo Brand
Electric:    Schneider / CHINT Brand
Temperature:    Omron / Shanghai ZT Brand
Screw:     high speed type
Winding Motor:    Worm Speed Reducer (Better)
Die:    HDPE and LDPE

Product description :
1. mini type film blowing machine
2. easy opeariton and shipment
3. width :100-500mm
4. capacity :50kg/h


Model
Taiwan Mini SJ-T45
Taiwan Mini SJ-T50
Screw diameter
φ45
φ50
Width of film (mm)
100-500
200-600
Thickness of film (mm)
HDPE 0.008-0.06   LDPE 0.02-0.10
HDPE 0.008-0.06   LDPE 0.02-0.10
Die size
HDPE φ60    LDPE φ100
HDPE φ80   LDPE φ100
Max output (kg/h)
50kg
55kg
Screw L/D length
30 :1/28:1
30:1/28:1
Screw and cylinder material
Scam-645/38 Crmoala
Scam-645/38 Crmoala
Main motor
15kw
18.5kw
Take up motor (kw)
1.5
1.5kw
Heating power (kw)
13
15
Dimension (mm)
2200×1800×2300
2200×1800×2300
Weight (T)
1.5
1.8

Main Features

1) strong  structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high speed automatization and intellectualization,no pollution

5)  CE certificate


Certifications
Detailed parts
Our Service
Packing & Delivery
Packaging
Size
according measued size
Weight
1.5-2T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

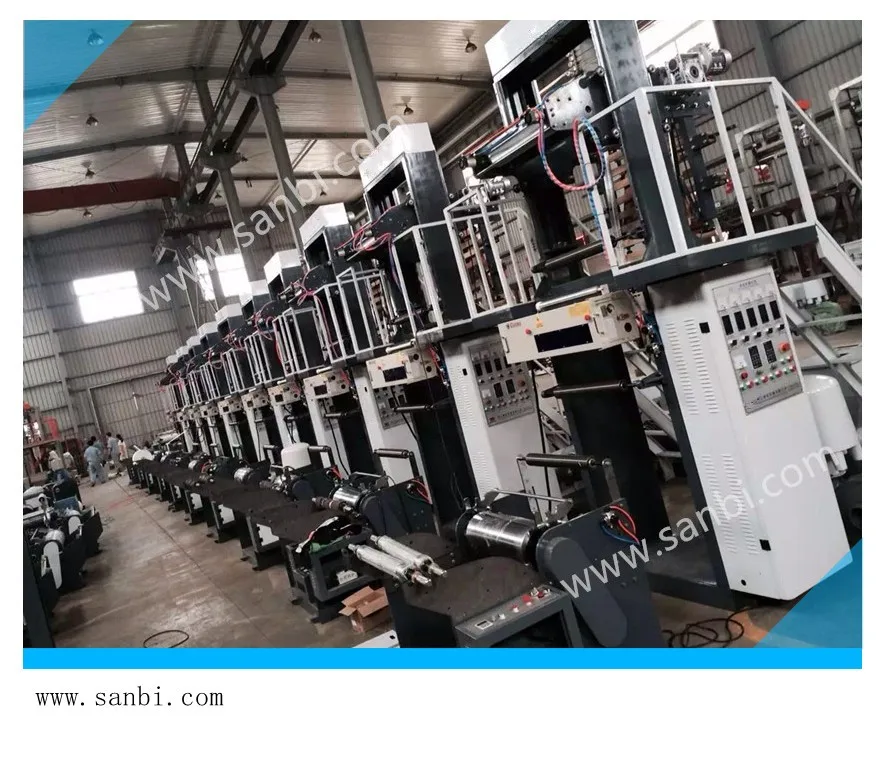

Factory image
